Ball valve manufacturer

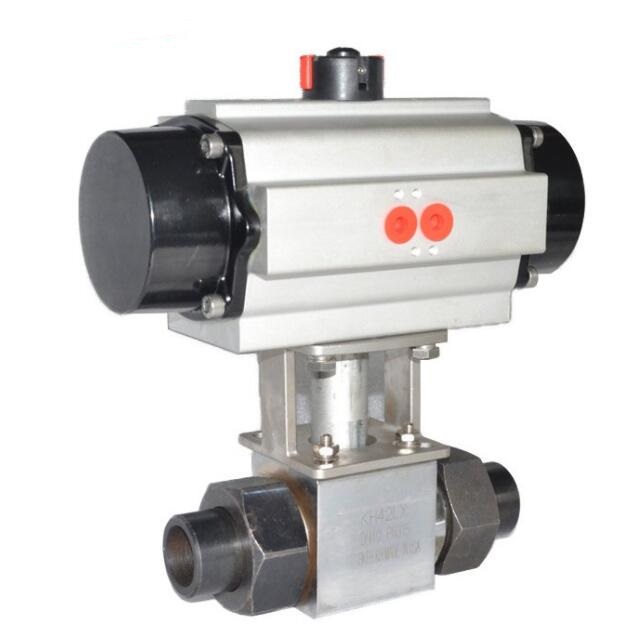

High pressure pneumatic SS ball valve

Port size：DN15-DN600;1/2''-24''
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Carbon Steel, Stainless Steel,forged steel
Connection：Flanged,welded,threaded.
Feature：Single acting or double acting is optional.

Product Description

China high pressure pneumatic ball valve manufacturer,factory and supplier,high pressure pneumatic SS ball valve is composed of double acting or single acting pneumatic actuator and ball valve for automatic control system, the accessories of the ball valve can be equipped with positioner for regulating control and solenoid valve,limit swith,air filter for on off control, side handwheel for manual control.0.4-0.7MPa air source to achieve switch operation, and send two pairs of passive contact signals indicating the valve switch.High pressure pneumatic SS ball valve is particularly suitable for the medium is viscous, containing particles, fiber properties of the occasion.High pressure pneumatic SS ball valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, papermaking and other industrial automatic control system, for remote centralized control or local control.

High pressure pneumatic SS ball valve product range:
-Ball valve size: 1/2"-24'' (DN15-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

High pressure pneumatic SS ball valve actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time

High pressure pneumatic SS ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
