Ball valve manufacturer

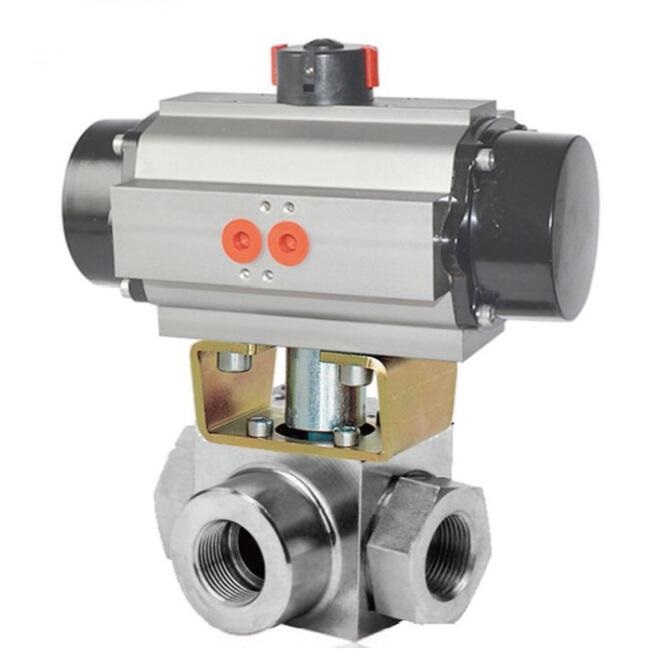

China 3 way mini ball valve with pneumatic actuator

Port size：DN10-DN100;1/4''-4''
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：T port or L port
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Carbon Steel, Stainless Steel,forged steel
Connection：Flanged,welded,threaded.
Feature：Single acting or double acting is optional.

Product Description

China pneumatic 3 way mini ball valve manufacturer,factory and supplier,China 3 way mini ball valve with pneumatic actuator consists of double acting or single acting pneumatic actuator and T port or L port 3 way high pressure mini ball valve,which uses reversing solenoid valve to control the valve required switch position.China 3 way mini ball valve with pneumatic actuator can achieve 0 degrees, 90 degrees, 180 degrees three positions, belongs to the standard products.

China 3 way mini ball valve with pneumatic actuator Main performance parameter
Pneumatic actuator: double action, single action normally closed, single action normally open
Accessories: optional directional solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism
Voltage: AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter:DN10-100mm
Nominal pressure: 1.6mpa - 42mpa CL150-CL2500
Suitable temperature:-30℃~450℃
Connection mode: flange type, thread type, welding type, clamp quick-install type
Valve body structure: O - type floating ball, fixed
Body material:WCB, 304, 316, 316L, etc
Valve ball material:WCB, 304, 316, 316L, etc
Seat lining: PTFE, PPL, hard seal, etc
Suitable medium: steam, liquid water, gas, etc

China 3 way mini ball valve with pneumatic actuator actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time
