Ball valve manufacturer

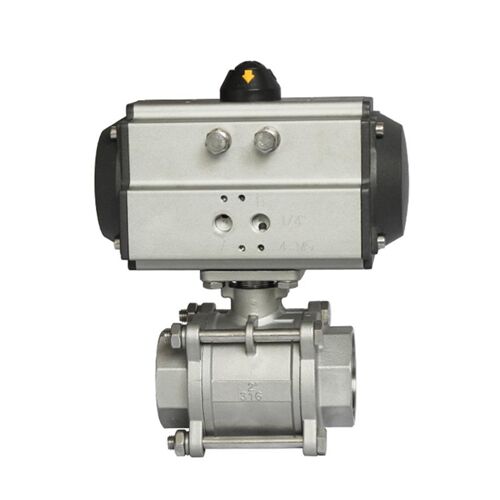

NPT Thread End Pneumatic Actuated Ball Valve

Port size：DN15-DN50
Pressure：1000 WOG or others
Structure：3 Pieces, full bore
Medium：Water,oil,gas,etc.
Temperature :-29～180℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：Threaded end or others
Feature：Double acting or single acting is optional.

Product Description

NPT Thread End Pneumatic Actuated Ball Valve manufacturer, factory and supplier in China. NPT Thread End Pneumatic Actuated Ball Valve is 2 PC or 3 PC threaded end ball valve with double acting or single acting pneumatic actuators. Pneumatic actuators of ball valve relatively fast speed, the fastest switching speed of 0.05 seconds/time, so usually also called pneumatic quick cut off the ball valve.NPT Thread End Pneumatic Actuated Ball Valve is usually with various accessories, such as solenoid valve, air source treatment sanlian pieces, limit switch, locator, control box, etc., in order to realize the local control and remote centralized control, in the control room can control the switch of the ball valve, do not need to run to the field or high altitude and dangerous manual control, to a great extent, save the human resources and time and safety.

NPT Thread End Pneumatic Actuated Ball Valve product range:
-Ball valve size: 1/2" ~ 4" (DN15-DN100)
-Pressure: 1000 WOG or ANSI Class 150~2500(PN16-PN420) Optional
-Temperature: -29ºC~ 150ºC, or -46ºC~ 450ºC optopnal
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic automated ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic automated ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

NPT Thread End Pneumatic Actuated Ball Valve pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time

NPT Thread End Pneumatic Actuated Ball Valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
