Pneumatic ball valve factory price

Shanghai Huixuan is pneumatic ball valve manufacturer and factory in China,we supply pneumatic ball valve factory price for you,Meanwhile we can offer carbon steel pneumatic ball valve price,stainless steel pneumatic ball valve price,PTFE PFA lined pneumatic ball valve price,ceramic lined pneumatic ball valve price,trunnion pneumatic ball valve price,segmented pneumatic ball valve price,high pressure pneumatic ball valve price,cryogenic pneumatic ball valve price,3 way pneumatic ball valve price.

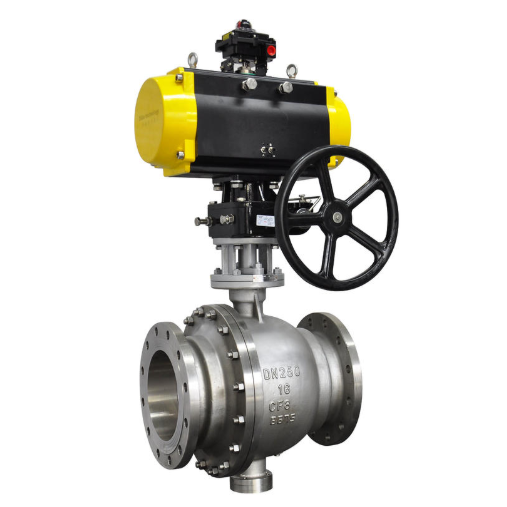

Pneumatic ball valve is composed of double acting or single acting pneumatic actuator and ball valve.Pneumatic ball valve can be equipped with travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to achieve switch operation, and send two pairs of passive contact signals indicating the valve switch.Pneumatic ball valve is particularly suitable for the medium is viscous, containing particles, fiber properties of the occasion.Pneumatic ball valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, papermaking and other industrial automatic control system, for remote centralized control or local control.

Pneumatic ball valve ball valve product range:
-Ball valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Pneumatic ball valve pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time


Pneumatic ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
