SBVE SAE J518 Flanged Ball Valve

Port size：DN15-DN80
Pressure：3000 PSI 6000 PSI or others
Structure：Floating
Medium：W.O.G.
Temperature :-10～100℃ or others
Body material：A105, F304, F316,etc.
Connection：Flanged end
Feature：SAE J518 Flanged End

Product Description

SBVE SAE J518 Flanged ball valve is made in accordance to SAE J518 CODE 61 (3000PSI) and SAE J518 CODE 62 (6000PSI) . SBVE SAE J518 Flanged ball valve is designed to use as on/off flow devices for hydraulic applications and have a round shape body. The size range of SBVE SAE J518 Flanged ball valve available is from DN13 to DN80, which is from 1/2” to 3”.

The working pressure of SBVE SAE J518 Flanged ball valve is available from 100 bar to 400 bar, subjected to valve size diameter. The final maximum pressure rating of flange connection is determined by the overall working pressure of the pipeline.

SBVE SAE J518 Flanged ball valve design to use in high pressure hydraulic systems. The valve working pressure determines by valve body size and when the body size goes bigger, the valve operation pressure goes lower. The final overall running pressure is determined by pipe or tube rating and flange connected. The working temperature ranges from -10°c to 100°c, subjected to material combination of the complete ball valve.

Size	1/2" to 3"
Material	Carbon Steel Stainless Steel
Working Pressure	3000 PSI 6000 PSI
Connection Type	SAE J518 Flange

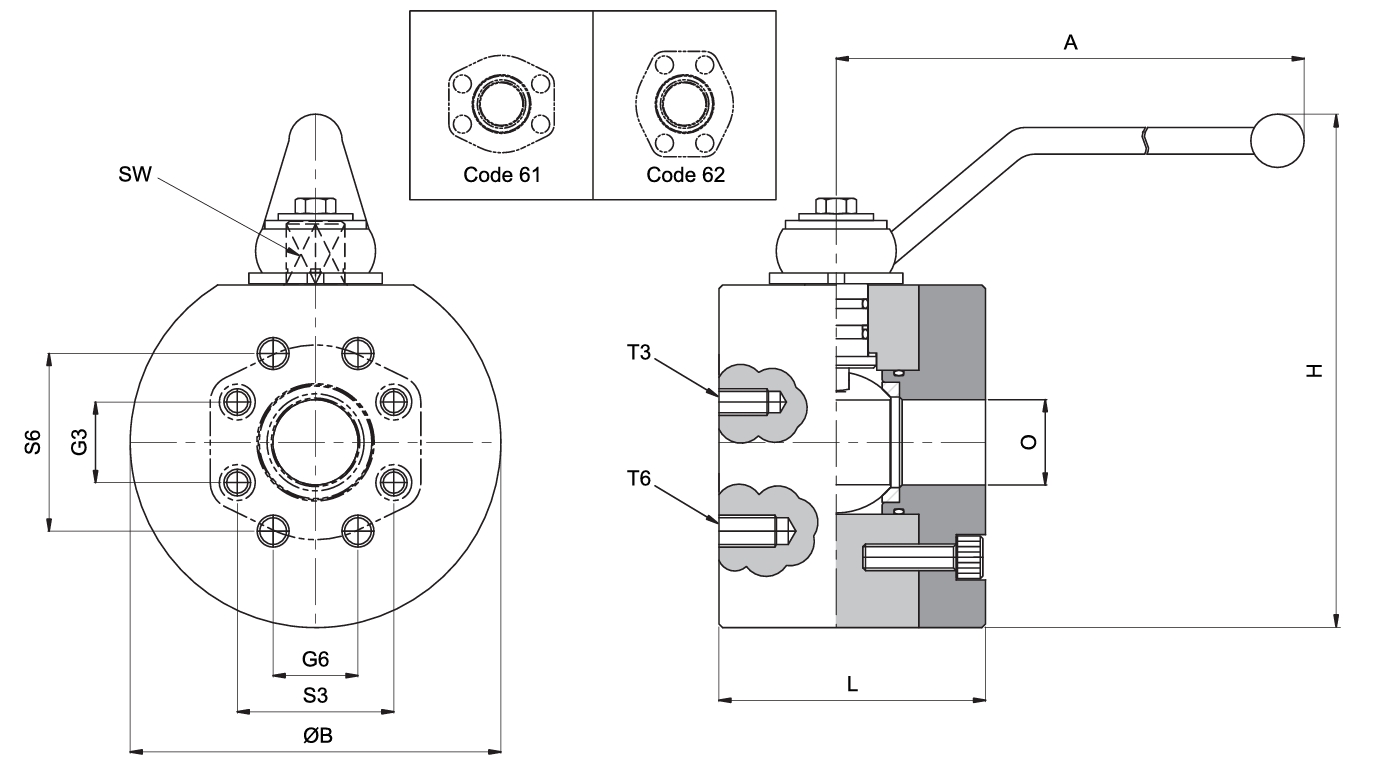

SBVE SAE J518 Flanged Ball Valve structure
