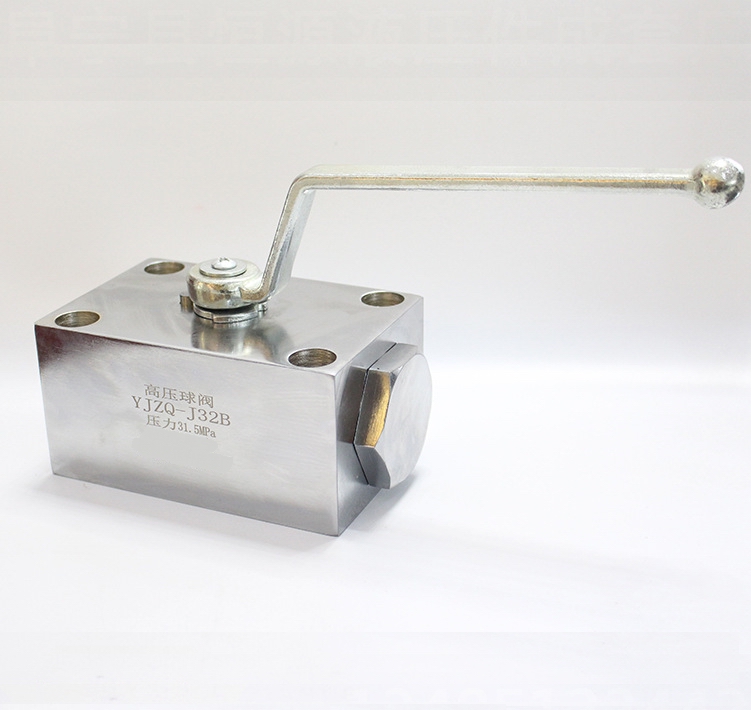

YJZQ Board type hydraulic ball valve

YJZQ Board type hydraulic ball valve introduction
YJZQ Board type hydraulic ball valve is suitable for putting through and cutting off in hydraulic system pipeline.YJZQ Board type hydraulic ball valve is made of steel forgings, the surface is chrome-plated, the appearance is beautiful, the operation is convenient, the sealing performance is good, it is the product of the hydraulic system pipeline.Operating temperature: -20~+80℃(please explain when ordering high temperature ball valves)

YJZQ Board type hydraulic ball valve features
YJZQ Board type hydraulic ball valve adopts integral forging processing, the hydraulic ball valve is simple in structure, convenient in operation, small in fluid resistance, reliable in sealing performance, replaceable sealing parts and payment parts, increasing the life and reducing the user cost;YJZQ Board type hydraulic ball valve has the characteristics of small flow resistance loss, reliable sealing performance, convenient operation and exquisite appearance.High pressure resistance, wide application, can be used to control the hydropower station oil, gas, water pipe system on and off.

YJZQ Board type hydraulic ball valve Technical parameters
1. Name and code: ball globe valve;
2. Medium temperature: -20℃ ~ +80℃ or high temperature;
3. Nominal size: 6 ~ 50mm;
4. Connection form: N-internal thread connection type W-external thread connection type B-plate connection type;
5. Nominal pressure: 31.5Mpa or 21Mpa;
6. Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.

YJZQ Board type hydraulic ball valve type introduction
Code: Y--Hydraulic
Product code: JZQ--Ball stop valve
Nominal pressure: J--31.5Mpa, H-21Mpa
Nominal diameter: DN6,10,15,20,25,32,40,50mm
Connection type: N--Femle thread (NG--British pipe thread)
                            W--Male thread
                            B--Board type

YJZQ Board type hydraulic ball valve outline dimension

Type	A	h	H	L0	E	F	L	L1	L2	L3	L4	Ф	D
YJZQ-J10B	33	42	68	160	38	54	81	45	56	11	10	Ф7	10
YJZQ-J15B	39	46	75	160	42	60	92	52	60	6	16	Ф9	15
YJZQ-J20B	49	50	78	180	50	70	108	60	70	7.5	17	Ф11	20
YJZQ-J25B	52	60	86	220	55	77	114	65	80	11	17.5	Ф11	25

Note: if you need other size which is not in the list, please contact us to customize.
