Ball valve manufacturer

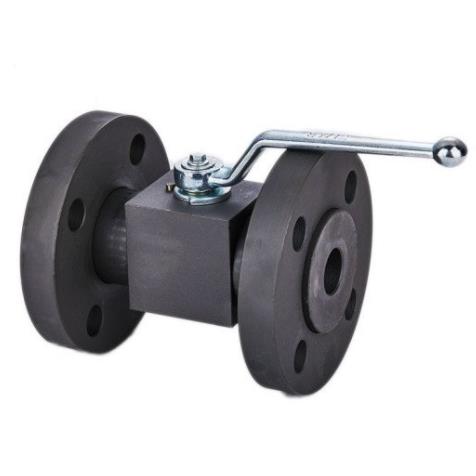

KHBF KHMF Flanged ball valve

Port size：DN15-DN100
Pressure：21Mpa, 31.5Mpa, 42Mpa
Structure：KHBF KHMF Type
Medium：Hydraulic oil or others
Temperature :-20～1000℃
Body material：Carbon steel,stainless steel,etc.
Connection：Flanged end
Feature：Customized order is acceptable.

Product Description

KHBF KHMF Flanged ball valve manufacturer, factory and supplier. KHBF KHMF Flanged ball valve is used for 21Mpa, 31.5Mpa or 42Mpa high pressure medium. KHBF KHMF Flanged ball valve is suitable for opening and closing of various pipelines in hydraulic system and chemical system. KHBF KHMF Flanged ball valve is switch fast, convenient, small fluid resistance, is the least of all valves in the fluid resistance as long as the stem rotation 90°, the ball valve to complete the full open or full close action, it is easy to achieve fast opening and closing.Stem seal is reliable.The stem only rotates when the ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure. KHBF KHMF Flanged ball valve applicable medium: hydraulic oil, water - glycol, other mixed liquids.

Product name: KHBF KHMF Flanged ball valve
Product Model: KHBF KHMF
Drive mode: Manual
connection mode: Flanged end
Structure: Straight through
seal structure: soft seat
Pressure range: 21Mpa, 31.5Mpa,42Mpa
Nominal diameter: DN10-100
Common materials: carbon steel, stainless steel and other

KHBF KHMF Flanged ball valve is suitable for hydraulic system and chemical system of all kinds of pipeline, for opening and closing.
Nominal pressure: PN 31.5 mpa test pressure: PS 48MPa
working pressure: 31.5 mpa (21Mpa, 31.5Mpa,42Mpa for optional)
Operating temperature: -20~+80C
(Note: Please explain when ordering high temperature ball valves)
Applicable medium: hydraulic oil, water, glycol, other mixed liquids
