Ball valve manufacturer

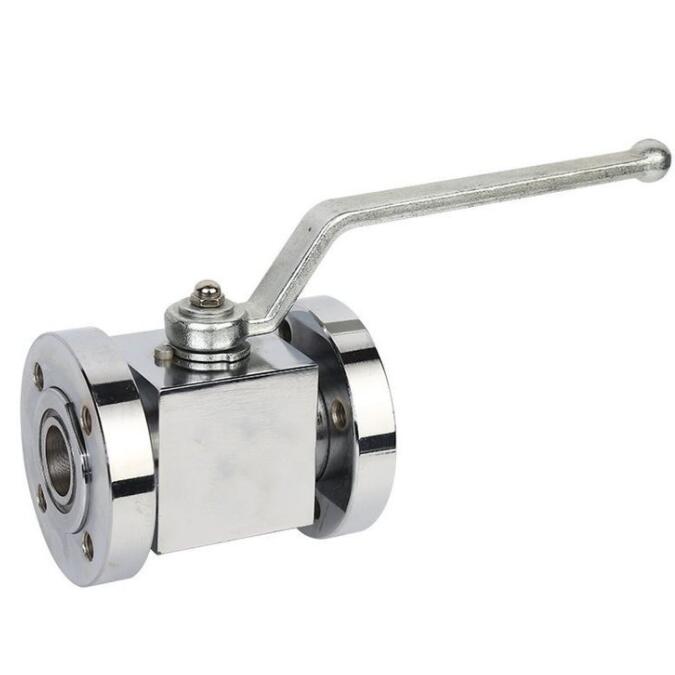

KHBF KHMF KHMFF Hydraulic ball valve

Port size：DN15-DN100
Pressure：31.5Mpa,21Mpa or others
Structure：KHBF KHMF KHMFF Type
Medium：hydraulic oil or others
Temperature :-20～100℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：Flanged end
Feature：Customized order is acceptable

Product Description

KHBF KHMF KHMFF Hydraulic ball valve manufacturer, factory and supplier. KHBF KHMF KHMFF Hydraulic ball valve is flanged end with 21Mpa, 31.5Mpa or 42Mpa high pressure. KHBF KHMF KHMFF Hydraulic ball valve is suitable for opening and closing of various pipelines in hydraulic system and chemical system. KHBF KHMF KHMFF Hydraulic ball valve is switch fast, convenient, small fluid resistance, is the least of all valves in the fluid resistance as long as the stem rotation 90°, the ball valve to complete the full open or full close action, it is easy to achieve fast opening and closing.Stem seal is reliable.The stem only rotates when the ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure. KHBF KHMF KHMFF Hydraulic ball valve applicable medium: hydraulic oil, water - glycol, other mixed liquids.

Product name: KHBF KHMF KHMFF Hydraulic ball valve
Product Model: KHBF KHMF KHMFF
Drive mode: Manual
connection mode: Flanged end
Structure: Straight through
seal structure: soft se
Pressure range: 21Mpa, 31.5Mpa,42Mpa
Nominal diameter: DN10-100
Common materials: carbon steel, stainless steel and other

KHBF KHMF KHMFF Hydraulic ball valve is suitable for hydraulic system and chemical system of all kinds of pipeline, for opening and closing.
Nominal pressure: PN 31.5 mpa test pressure: PS 48MPa
working pressure: 31.5 mpa (21Mpa, 31.5Mpa,42Mpa for optional)
Operating temperature: -20~+80C
(Note: Please explain when ordering high temperature ball valves)
Applicable medium: hydraulic oil, water, glycol, other mixed liquids
