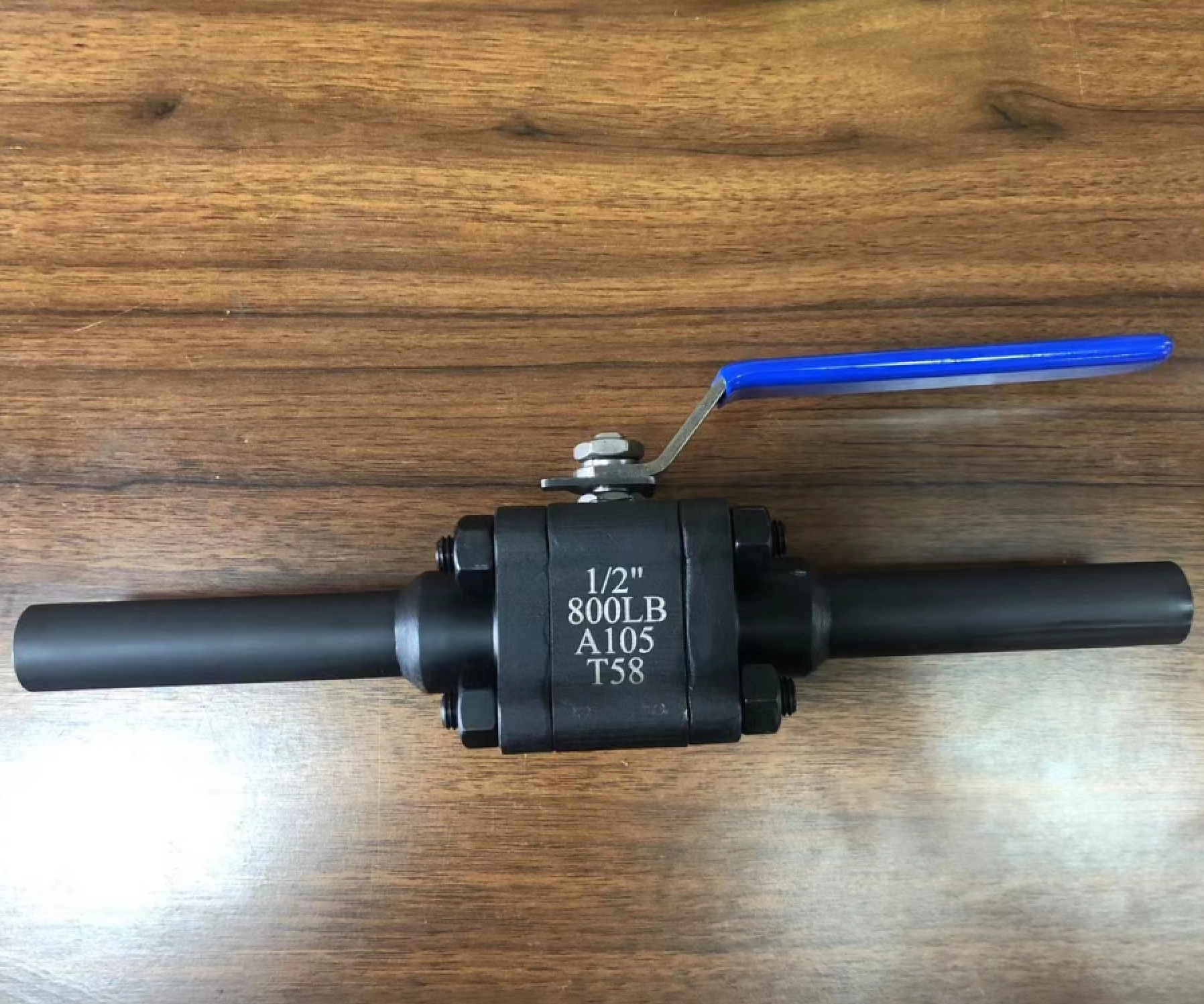

800LB Forged Ball Valve With Welded Nipple 100 MM

Port size：DN10-DN50
Pressure：800LB-2500LB
Structure：3PCS structure
Medium：W.O.G.
Temperature :-29～180℃ or higher
Body material：A105, F304, F316,etc.
Connection：Welded End or others
Feature：With Welded Nipple 100 MM or other length

Product Description

800LB Forged ball valve with welded nipple 100mm is 3PC, full bore, floating ball structure high pressure ball valve from Class 800 to Class 2500 which can be used for water,oil,gas service for different industries. 800LB Forged ball valve with welded nipple 100mm is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems.

800LB Forged ball valve with welded nipple 100mm has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 800LB Forged ball valve with welded nipple 100mm can be level type, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is 800lb to 2500lb, the nominal diameter is DN10-50mm, the material can be forged steel, forged stainless steel. Because of the wide range of use of ball valve, the same ball valve in different situations and working conditions have different collocation.

800LB Forged ball valve with welded nipple 100mm Specification:

Product Name	800LB Forged ball valve with welded nipple 100mm
1. Material	A105 or F304,F316 etc.
2. Size	1/4~2 inch ( DN10~DN50)
3. Port	Full Port
4. Working Pressure	800LB, or 900LB,1500LB,2500LB
5. Connection Ends	Welded end or others
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

800LB Forged ball valve with welded nipple 100mm features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
