Ball valve manufacturer

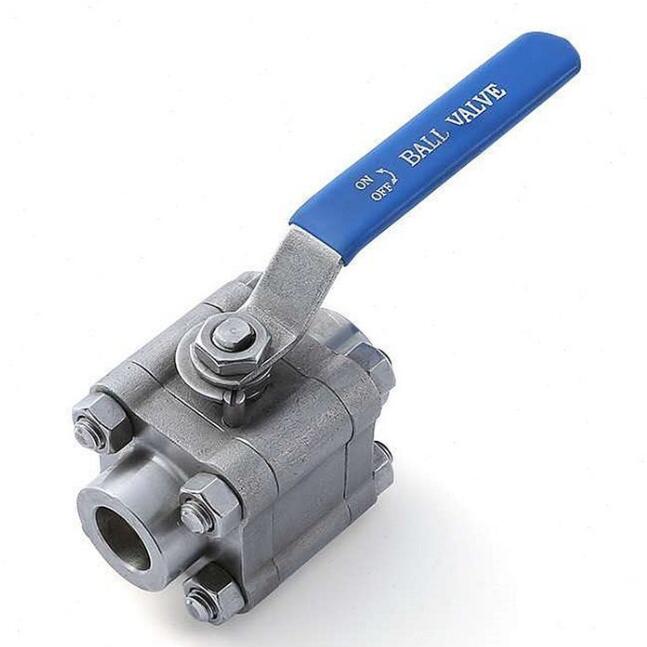

Forged Ball Valve Factory Price in China

Port size：1/2"~2" (DN15~DN50)
Pressure：PN16-PN420 CL150-CL2500
Structure：2PC or 3PC Structure
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：A105 LF2 F304 F316 F316L or others
Connection：Flange,Thread,SW,BW is optional
Feature：Different structure is optopnal

Product Description

Forged Ball Valve Factory Price i China for sale, Forged Ball Valve manufacturer, factory and supplier for 2PC or 3PC, full bore, floating ball structure high pressure ball valve from Class 150 to Class 2500. Forged Ball Valve is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems.

Forged Ball Valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of Forged Ball Valve can be level type, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is 150lb to 2500lb, the nominal diameter is DN10-600mm, the material can be forged steel, forged stainless steel. Because of the wide range of use of ball valve, the same ball valve in different situations and working conditions have different collocation.

Forged Ball Valve Specification:

Product Name	Forged Ball Valve
1. Material	A105 or F304,F316 etc.
2. Size	1/4~24 inch ( DN10~DN600)
3. Port	Full Port
4. Working Pressure	150LB,300LB,600LB,800LB, or 900LB,1500LB,2500LB
5. Connection Ends	Flanged,threaded or welded end
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Forged Ball Valve features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
