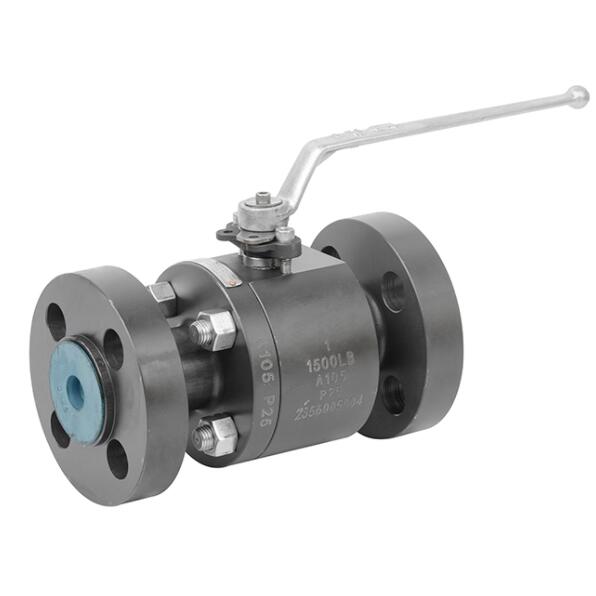

1 Inch A105 Forged Ball Valve Class 1500

Port size：1 inch or others
Pressure：Class 1500 or others
Structure：2 pieces or 3 pieces
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃, -40～450℃
Body material：A105 or thers
Connection：Flange or others
Feature：High pressure forged valve manufacturer

Product Description

1 Inch A105 Forged Ball Valve Class 1500 manufacturer, factory and supplier in China, 1 Inch A105 Forged Ball Valve Class 1500 is 2PC or 3PC, full bore, floating ball structure, 1 Inch A105 Forged Ball Valve Class 1500 is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems.1 Inch A105 Forged Ball Valve Class 1500 has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 1 Inch A105 Forged Ball Valve Class 1500 can be level type, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is 150lb to 2500lb, the nominal diameter is DN10-600mm, the material can be forged steel, forged stainless steel.Because of the wide range of use of ASTM A105 Forged steel ball valve, the same ball valve in different situations and working conditions have different collocation.

1 Inch A105 Forged Ball Valve Class 1500 Specification:

Product Name	ASTM A105 Forged steel ball valve
1. Material	A105 or F304,F316 etc.
2. Size	1/4~24 inch ( DN10~DN600)
3. Port	Full Port
4. Working Pressure	150LB,300LB,600LB,800LB, or 900LB,1500LB,2500LB
5. Connection Ends	Flanged,threaded or welded end
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

1 Inch A105 Forged Ball Valve Class 1500 features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
