Ball valve manufacturer

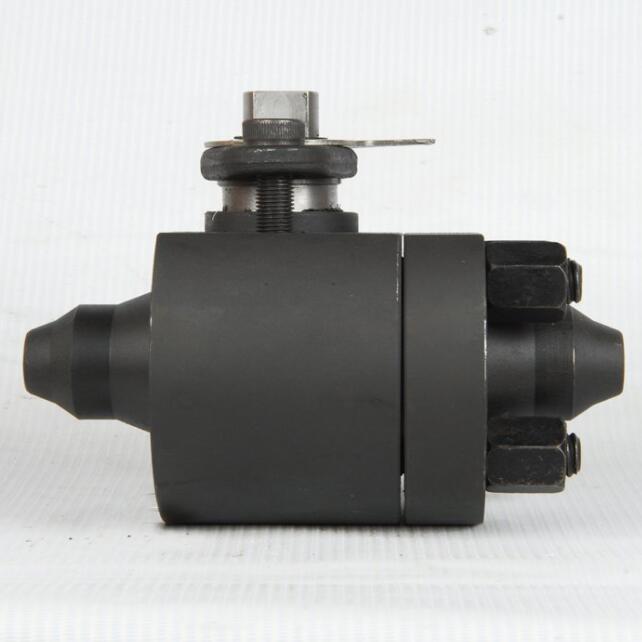

Class 1500LB 2500LB Forged ball valve

Port size：DN10-DN300;1/4''-12''
Pressure：1500LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：A105 or F304,F316,F316L,F51,F53 etc.
Connection：Flanged,welded,threaded.
Feature：High pressure ball valve

Product Description

China forged steel ball valve manufacturer,factory and sypplier,Class 1500LB 2500LB Forged ball valve is 2PC or 3PC,full bore, floating ball structure,Class 1500LB 2500LB Forged ball valve is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems.The driving mode of Class 1500LB 2500LB Forged ball valve can be manual, worm wheel, pneumatic and electric.

Class 1500LB 2500LB Forged ball valve Specification:

Product Name	Class 1500LB 2500LB Forged ball valve
1. Material	A105 or F304,F316,F316L,F51,F53 etc.
2. Size	1/4~12 inch ( DN10~DN300)
3. Port	Full Port
4. Working Pressure	150LB,300LB,600LB,800LB, or 900LB,1500LB,2500LB
5. Connection Ends	Flanged,threaded or welded end
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Class 1500LB 2500LB Forged ball valve features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
