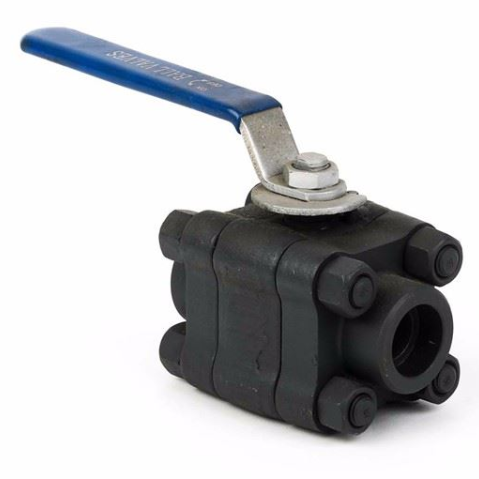

3PCS Forged Steel Thread Ball Valve

3PCS Forged Steel Thread Ball Valve introduction
3PCS Forged Steel Thread Ball Valve for high pressure medium with 3PC,full bore or reduced bore, floating ball structure,3PCS Forged Steel Thread Ball Valve is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems.3PCS Forged Steel Thread Ball Valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 3PCS Forged Steel Thread Ball Valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is 150lb to 2500lb, the nominal diameter is DN10-50mm, the material can be forged steel, forged stainless steel.

3PCS Forged Steel Thread Ball Valve structure feature
Three, Two-Pieces Forged Body
Floating Type, Full & Reduced Bore
Blow-out Proof Stem
Fire Safe Design
Material and Working Temp.:
PTFE&R-PTFE: 0ºC-200ºC(32ºF-392ºF) PEEK: 260ºC(500°F) Maximum


3PCS Forged Steel Thread Ball Valve standard
Design: ASME B16.34/BS 5351
Face to Face: Manufacturer Standard
Screwed End: ANSI B1.20.1;JB/T7306
Scoket Welded End: ANSI B16.11;JB/T1751
Butt-welded End:ANSI B16.25;JB/T12224
Flanged End:ANSI B16.5;JB79
Test: API 598;GB/T13927;JB/T9092
Fire Safe Test: API 607/API 6FA


3PCS Forged Steel Thread Ball Valve main part material
