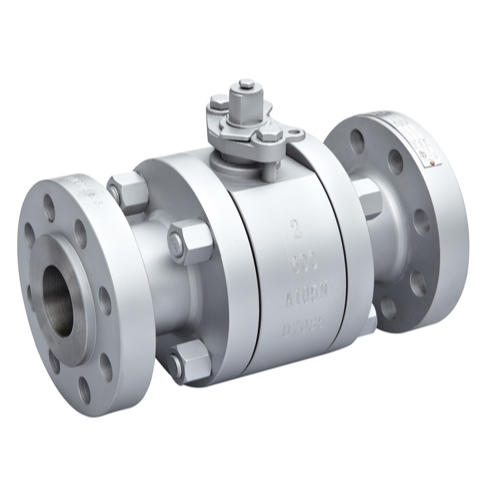

3 PC Full bore forged steel ball valve

Port size：1/2"-12''
Pressure：150LB-2500LB
Structure：3PC,Floating ball
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Forged steel
Connection：RF, BW, RTJ
Feature：Customized for client's requirement

Product Description

3 PC Full bore forged steel ball valve introduction
3 PC Full bore forged steel ball valve is floating ball structure,the driving mode of 3 PC Full bore forged steel ball valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is 150lb to 2500lb, the nominal diameter is 1/2''-12'', the material can be forged steel, forged stainless steel.

3 PC Full bore forged steel ball valve is suitable for chemical industry, petroleum, natural gas, metallurgy and other industries and hydrogen sulfide medium, impurities, corrosion severe long - term natural gas pipeline.

3 PC Full bore forged steel ball valve Specification:

Product Name	3 PC Full bore forged steel ball valve
1. Material	F304,F316 etc.
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	150LB-2500LB
5. Connection Ends	RF,RTJ,BW,SW
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

3 PC Full bore forged steel ball valve features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
