Ball valve manufacturer

Forged steel ball valve factory and supplier

Port size：DN50-DN300;2''-12''
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Forged steel
Connection：Flanged,welded,threaded.
Feature：Different operation is for option.

Product Description

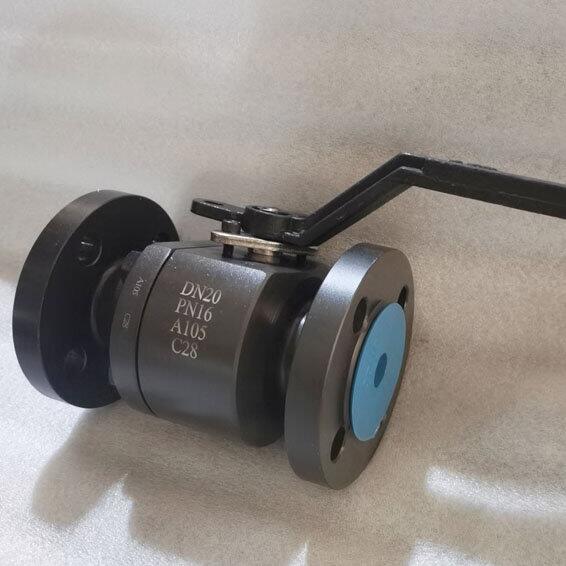

China forged steel ball valve manufacturer,factory and supplier for A105 F304 F316 F316L F51 F53 or other forged material ball valve.the pressure range is 150lb to 2500lb, the nominal diameter is DN15 to DN300. Forged steel ball valve is 2PC or 3PC floating ball structure,the driving mode of forged steel ball valve can be manual, worm wheel, pneumatic and electric, the connection mode of forged steel ball valve can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal,

Forged steel ball valve is suitable for chemical industry, petroleum, natural gas, metallurgy and other industries and hydrogen sulfide medium, impurities, corrosion severe long - term natural gas pipeline.

Forged steel ball valve Specification:

Product Name	Forged steel ball valve
1. Material	A105,F304,F316,F316L,F51,F51,F55 etc.
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	150LB-2500LB
5. Connection Ends	RF,RTJ,BW,SW
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Forged steel ball valve features:
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
