Ball valve manufacturer

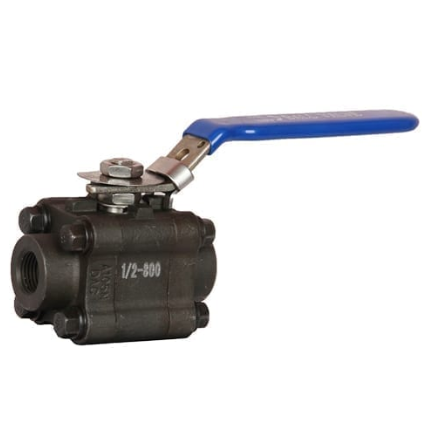

High pressure forged ball valve Class 800

Port size：1/2"~2" (DN15~DN50)
Pressure：CL800 or CL900-CL2500
Structure：Floating,full bore,3PC
Medium：Water,steam,oil,gas,etc.
Temperature :-29～450℃
Body material：A105 LF2 F304 F316 F316L or others
Connection：Flange,Thread,SW,BW is optional
Feature：Higher pressure is acceptable

Product Description

High pressure forged ball valve Class 800 introduction
High pressure forged ball valve Class 800 is 3PC,full bore, floating ball structure,High pressure forged ball valve Class 800 is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems.High pressure forged ball valve Class 800 has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of High pressure forged ball valve Class 800 can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal, the pressure range is 150lb to 2500lb, the nominal diameter is DN10-50mm, the material can be forged steel, forged stainless steel.Because of the wide range of use of the High pressure forged ball valve Class 800, the same ball valve in different situations and working conditions have different collocation.

High pressure forged ball valve Class 800 work by rotating the valve to keep the valve open or blocked.Ball valve switch light, small volume,High pressure forged ball valve Class 800 can be made into a large diameter, reliable sealing, simple structure, convenient maintenance, sealing surface and spherical surface often in the closed state, not easy to be eroded by the medium.High pressure forged ball valve Class 800 is suitable for chemical industry, petroleum, natural gas, metallurgy and other industries and hydrogen sulfide medium, impurities, corrosion severe long - term natural gas pipeline.

High pressure forged ball valve Class 800 Specification:

Product Name	High pressure forged ball valve Class 800
1. Material	A105 or F304,F316 etc.
2. Size	1/4~2 inch ( DN10~DN50)
3. Port	Full Port
4. Working Pressure	800LB, or 900LB,1500LB,2500LB
5. Connection Ends	Socket weld
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

High pressure forged ball valve Class 800 features
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
