Ball valve manufacturer

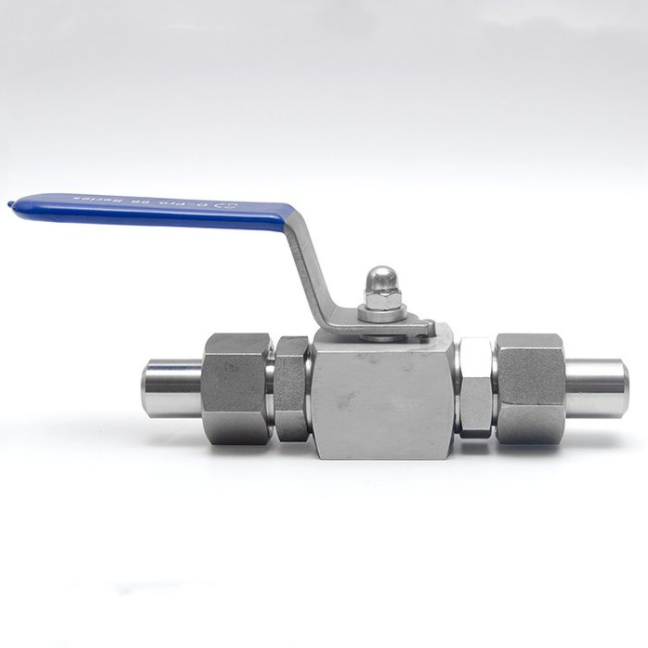

China hydraulic instrument ball valve

Port size：DN6-DN80
Pressure：21Mpa,31.5Mpa,3000-10000PSI
Structure：Full bore
Medium：Water,oil,steam,gas
Temperature :-46～150℃
Body material：A105 LF2 F304 F316 F316L or others
Connection：Flanged,threaded,welded is optional
Feature：For high pressure medium

Product Description

China hydraulic instrument ball valve introduction
China hydraulic ball valve manufacturer,factory and supplier,China hydraulic instrument ball valve is suitable for putting through and cutting off in hydraulic system pipeline.China hydraulic instrument ball valve is made of steel forgings, the surface is chrome-plated, the appearance is beautiful, the operation is convenient, the sealing performance is good, it is the product of the hydraulic system pipeline.China hydraulic instrument ball valve operating temperature: -20~+80℃(please explain when ordering high temperature ball valves)

China hydraulic instrument ball valve features
China hydraulic instrument ball valve adopts integral forging processing, the hydraulic ball valve is simple in structure, convenient in operation, small in fluid resistance, reliable in sealing performance, replaceable sealing parts and payment parts, increasing the life and reducing the user cost;China hydraulic instrument ball valve has the characteristics of small flow resistance loss, reliable sealing performance, convenient operation and exquisite appearance.High pressure resistance, wide application, can be used to control the hydropower station oil, gas, water pipe system on and off.

China hydraulic instrument ball valve Technical parameters
1. Name and code: ball globe valve;
2. Medium temperature: -20℃ ~ +80℃ or high temperature;
3. Nominal size: 6 ~ 80mm;
4. Connection form: HL-internal thread connection type WL-external thread connection type F-flange end connetion type B-plate connection type;
5. Nominal pressure: 21Mpa,31.5Mpa,3000PSI,5000PSI,10000PSI
6. Suitable medium: mineral oil, water, hydraulic system, ethylene glycol and emulsion.
