Ball valve manufacturer

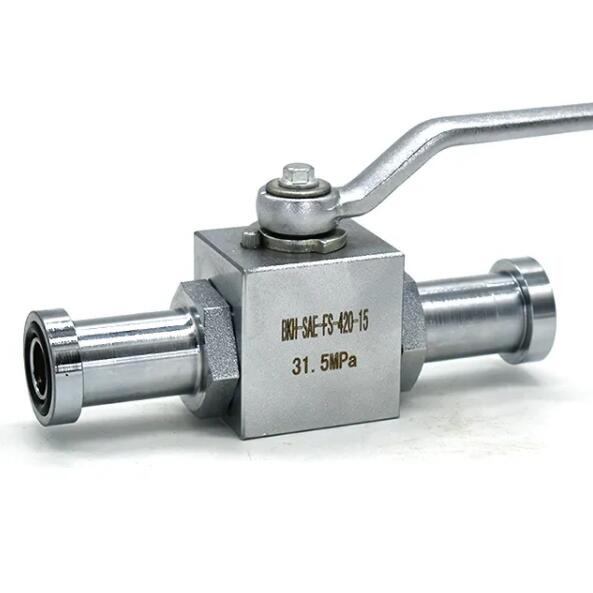

BKH-SAE-FS Hydraulic ball valve

Port size：DN10-DN100
Pressure：21Mpa, 31.5Mpa, 42Mpa
Structure：BKH-SAE-FS Type
Medium：hydraulic oil or others
Temperature :-20～100℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：According to client requirement
Feature：Customized order is acceptable

Product Description

BKH-SAE-FS Hydraulic ball valve manufacturer, factory and supplier. BKH-SAE-FS Hydraulic ball valve materials are steel and stainless steel, with an available rating of 210 Bars,315 Bars and 420 Bars. BKH-SAE-FS Hydraulic ball valve is a two way ball valve with SAE adapter (metric/unc). The SAE adapter is connected to the extended thread at the both end of ball valve. BKH-SAE-FS Hydraulic ball valve is used to control, restrict or shut off liquids or gases on the system line. It is also a quarter-turn type ball valve, that contains a floating ball.

BKH-SAE-FS Hydraulic ball valve is suitable for general hydraulic oil and gases application. A special feature of this type ball valve is it was made to suit SAE 3000# (210 bar) (ISO 6162-1) and SAE 6000#(420 bar) (ISO 6162-2). BKH-SAE-FS Hydraulic ball valve has extended male thread from the ball valve where SAE adapters are connected on both ends. Typically, SAE flange end ball valves are used for hydraulic oil and gases application.

BKH-SAE-FS Hydraulic ball valve is important to know the type of applications, and working temperature for the ball valves, in order to identify the most suitable material for the ball valves parts, such as ball seat, and seal for stem and adaptor. For the Steel material, the temperature range from -20˚C to 100˚C. while the temperature for Stainless Steel material, range from -30˚C to 100˚C.

Product name: BKH-SAE-FS Hydraulic ball valve
Product Model: BKH-SAE-FS
Drive mode: Manual
Structure: Straight through
seal structure: soft seat
Pressure range: 21Mpa, 31.5Mpa,42Mpa
Nominal diameter: DN10-100
Common materials: carbon steel, stainless steel and other

BKH-SAE-FS Hydraulic ball valve is suitable for hydraulic system and chemical system of all kinds of pipeline, for opening and closing.
Nominal pressure: PN 31.5 mpa test pressure: PS 48MPa
working pressure: 31.5 mpa (21Mpa, 31.5Mpa,42Mpa for optional)
Operating temperature: -20~+80C
(Note: Please explain when ordering high temperature ball valves)
Applicable medium: hydraulic oil, water, glycol, other mixed liquids
