Ball valve manufacturer

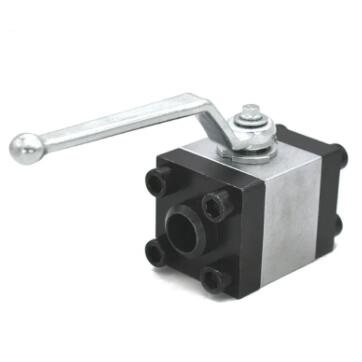

ZYQF integrated combination ball valve

Port size：DN10-DN80
Pressure：21Mpa, 31.5Mpa
Structure：Integrated combination structure
Medium：hydraulic oil or others
Temperature :-20～100℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：According to client requirement
Feature：Customized order is acceptable

Product Description

ZYQF integrated combination ball valve manufacturer, factory and supplier. ZYQF integrated combination ball valve is suitable for opening and closing of various pipelines in hydraulic system and chemical system. ZYQF integrated combination ball valve is switch fast, convenient, small fluid resistance, is the least of all valves in the fluid resistance as long as the stem rotation 90°, the ball valve to complete the full open or full close action, it is easy to achieve fast opening and closing.Stem seal is reliable.The stem only rotates when the ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure. ZYQF integrated combination ball valve applicable medium: hydraulic oil, water - glycol, other mixed liquids.

Product name: ZYQF integrated combination ball valve
Product Model: ZYQF
Drive mode: Manual
connection mode: integrated
Structure: Straight through
seal structure: soft seal
Pressure range: 31.5Mpa-50mpa
Nominal diameter: DN10-80
Common materials: carbon steel, stainless steel and other

ZYQF integrated combination ball valve is suitable for hydraulic system and chemical system of all kinds of pipeline, for opening and closing.
Nominal pressure: PN 31.5 mpa test pressure: PS 48MPa
working pressure: 31.5 mpa
Operating temperature: -20~+80C
(Note: Please explain when ordering high temperature ball valves)
Applicable medium: hydraulic oil, water, glycol, other mixed liquids
