Ball valve manufacturer

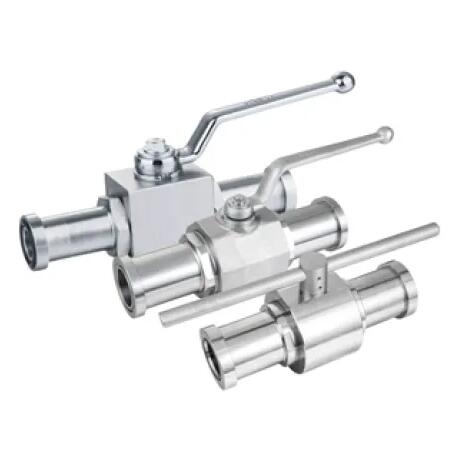

BKH-SAEFS Ball Valve with SAE Split Flange Adapter

Port size：DN15-DN100
Pressure：3000 PSI ,6000 PSI or others
Structure：Square or round body
Medium：hydraulic oil or others
Temperature :-20～80℃
Body material：Carbon Steel, Stainless Steel or others
Connection：SAE Split Flange Adapter
Feature：Customized order is acceptable

Product Description

BKH-SAEFS Ball Valve with SAE Split Flange Adapter manufacturer, factory and supplier. BKH-SAEFS Ball Valve with SAE Split Flange Adapter materials are steel and stainless steel, with an available rating of 210 Bars,315 Bars and 420 Bars. BKH-SAEFS  Ball Valve with SAE Split Flange Adapter  is a two way ball valve with SAE adapter (metric/unc). The SAE adapter is connected to the extended thread at the both end of ball valve. BKH-SAEFS  Ball Valve with SAE Split Flange Adapter  is used to control, restrict or shut off liquids or gases on the system line. It is also a quarter-turn type ball valve, that contains a floating ball.

BKH-SAEFS Ball Valve with SAE Split Flange Adapter is suitable for general hydraulic oil and gases application. A special feature of this type ball valve is it was made to suit SAE 3000# (210 bar) (ISO 6162-1) and SAE 6000#(420 bar) (ISO 6162-2). BKH-SAEFS Hydraulic ball valve has extended male thread from the ball valve where SAE adapters are connected on both ends. Typically, SAE flange end ball valves are used for hydraulic oil and gases application.

BKH-SAE-FS Ball Valve with SAE Split Flange Adapter  is important to know the type of applications, and working temperature for the ball valves, in order to identify the most suitable material for the ball valves parts, such as ball seat, and seal for stem and adaptor. For the Steel material, the temperature range from -20˚C to 100˚C. while the temperature for Stainless Steel material, range from -30˚C to 100˚C.

Product name: BKH-SAEFS Ball Valve with SAE Split Flange Adapter
Product Model: BKH-SAEFS
Drive mode: Manual
Structure: Straight through
seal structure: soft seat
Pressure range: 21Mpa, 31.5Mpa,42Mpa
Nominal diameter: DN10-100
Common materials: carbon steel, stainless steel and other

BKH-SAEFS Ball Valve with SAE Split Flange Adapter is suitable for hydraulic system and chemical system of all kinds of pipeline, for opening and closing.
Nominal pressure: PN 31.5 mpa test pressure: PS 48MPa
working pressure: 31.5 mpa (21Mpa, 31.5Mpa,42Mpa for optional)
Operating temperature: -20~+80C
(Note: Please explain when ordering high temperature ball valves)
Applicable medium: hydraulic oil, water, glycol, other mixed liquids
