Ball valve manufacturer

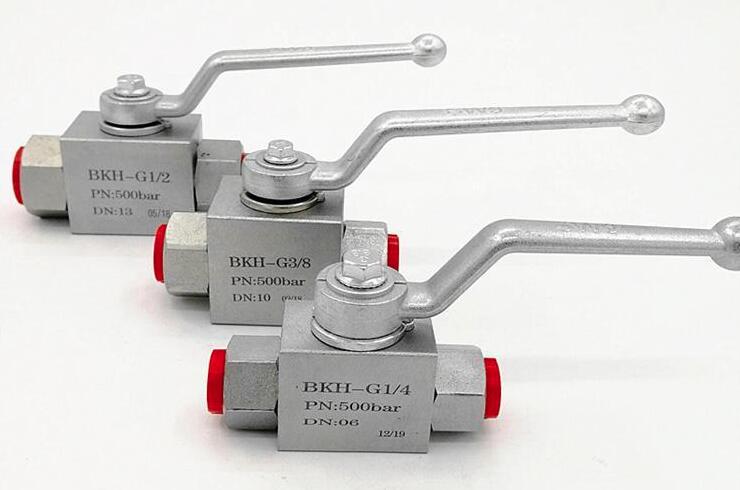

BKH Carbon Steel Hydraulic Ball Valve

Port size：DN4-DN50
Pressure：315 bar, 400 bar, 500 bar
Structure：2 way
Medium：hydraulic oil or others
Temperature :-20～80℃
Body material：Carbon Steel, Stainless Steel or others
Connection：Threaded end： Male or female
Feature：Male or Female threaded end is optional

Product Description

BHK Carbon steel hydraulic ball valve manufacturer, factory and supplier. BHK Carbon steel hydraulic ball valve can be female and male threaded end for 315 bar, 400 bar, 500 bar high pressure service, BHK Carbon steel hydraulic ball valve is suitable for opening and closing of various pipelines in hydraulic system and chemical system.Switch fast, convenient, small fluid resistance, as long as the stem rotation 90°, BHK Carbon steel hydraulic ball valve can complete the full open or full close action, BHK Carbon steel hydraulic ball valve is easy to achieve fast opening and closing.Stem seal is reliable.The stem only rotates when the ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure.KHB High pressure hydraulic ball valve is applicable medium: hydraulic oil, water - glycol, other mixed liquids.

BKH Carbon steel hydraulic ball valve code information

(1) Series code: BKH series,
(2 )Connection code: M**, G**, **LR, **SR, PT**, NPT**
(3) Body material: 1- steel, 2- stainless steel
(4) Ball material: 1- steel, 2- brass, 3- stainless steel
(5) Working temperature: 1, -25 ~ +100℃ 2, -30 ~ +170℃
(6) Other seals: 2-NBR, 4-Vition
(7)Type of handle: 01- aluminum straight handle 02- aluminum crank 03- zinc cast straight handle 04- zinc cast crank 05- steel straight handle 06- steel crank 09- without handle
(8) Design serial number: agreed by the production
(9) Surface treatment: blank - phosphating, G-plating yellow zinc

BKH Carbon steel hydraulic ball valve
