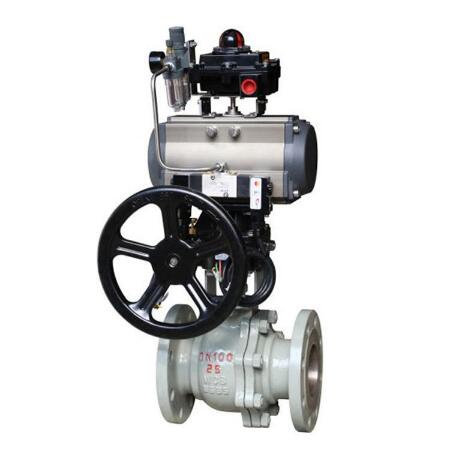

Pneumatic single acting air actuated ball valve

Pneumatic single acting air actuated ball valve introduction:
Pneumatic single acting air actuated ball valve is composed of high precision pneumatic actuator and precision ball valve.Pneumatic single acting air actuated ball valve is mainly divided into soft seal pneumatic ball valve and hard seal pneumatic ball valve.Pneumatic single acting air actuated ball valve has the advantages of compact structure, small volume, reliable operation, low flow resistance coefficient, good tightness, easy maintenance, convenient installation, strong adaptability.Pneumatic single acting air actuated ball valve can be equipped with travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to achieve switch operation, and send two pairs of passive contact signals indicating the valve switch.Pneumatic single acting air actuated ball valve is particularly suitable for the medium is viscous, containing particles, fiber properties of the occasion.Pneumatic single acting air actuated ball valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, papermaking and other industrial automatic control system, for remote centralized control or local control.

Pneumatic single acting air actuated ball valve is the ball valve with pneumatic actuators.Pneumatic actuators of relatively fast speed, the fastest switching speed of 0.05 seconds/time, so usually also called pneumatic quick cut off the ball valve.Pneumatic single acting air actuated ball valve is usually with various accessories, such as solenoid valve, air source treatment sanlian pieces, limit switch, locator, control box, etc., in order to realize the local control and remote centralized control, in the control room can control the switch of the ball valve, do not need to run to the field or high altitude and dangerous manual control, to a great extent, save the human resources and time and safety.

Pneumatic single acting air actuated ball valve product range:
-Ball valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Pneumatic single acting air actuated ball valve pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time


Pneumatic single acting air actuated ball valve adopts a new series of pneumatic actuators, with double action type and single action type (spring return), pinion and rack drive, safe and reliable;Large diameter valve using series AW pneumatic actuator fork transmission, reasonable structure, large output torque, double action and single action.
1. Geared double piston with large output torque and small volume.
2. The cylinder is made of aluminum and gold, light in weight and beautiful in appearance.
3. Manual operation mechanism can be installed at the top and bottom.
4, rack type connection can adjust the opening Angle, rated flow.<
5. The actuator can choose feedback indication of live signal and various accessories to realize automatic operation.
6. IS05211 standard connection provides convenience for product installation and replacement.
7. Pitch screws adjusted at both ends can provide ±4° adjustable range for standard products at 0° and 90°.Ensures synchronization accuracy with ball valve.

Pneumatic single acting air actuated ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
