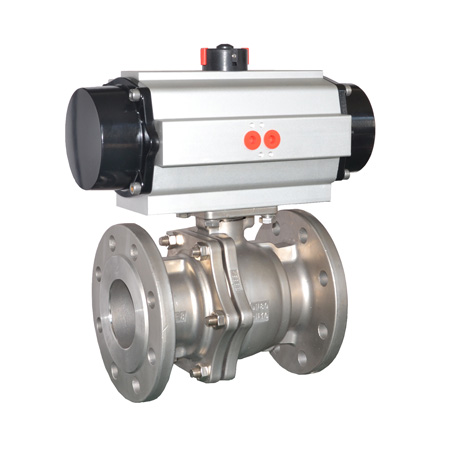

Stainless steel pneumatic on off ball valve

Stainless steel pneumatic on off ball valve introduction
Stainless steel pneumatic on off ball valve is composed of high platform ball valve and pneumatic actuator.There are two control modes for the Stainless steel pneumatic on off ball valve: switch off type and intelligent adjustment type.Stainless steel pneumatic on off ball valve with reversing solenoid valve, limit switch and input 0.4~ 0.7mpa air source to achieve electrical switch control and remote valve position feedback.Stainless steel pneumatic on off ball valve can be intelligently regulated with 4-20MADC signal input from electric regulator, which can realize the adjustment of pressure, flow, temperature, liquid level and other parameters.Pneumatic ball valve according to its sealing performance is divided into metal sealing and soft sealing.Stainless steel pneumatic on off ball valve is especially suitable for the medium is viscous, containing particles, fiber properties of the occasion.Stainless steel pneumatic on off ball valve can be widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmacy, papermaking and other industrial automatic control systems for remote centralized control or local control.

Stainless steel pneumatic on off ball valve Feature
1. Stainless steel pneumatic on off ball valvehas the advantages of compact structure, small volume, reliable operation, good sealing, easy maintenance, convenient installation and strong adaptability.
2. Fire resistance, anti - static treatment, valve stem anti-blow out device, to ensure the safety of the system.
3. High platform design in accordance with ISO5211 standard, can be ISO5211 standard actuator, direct connection.Good compatibility
4.Silicon sol precision casting valve body, compact structure, high dimensional accuracy.The appearance is exquisite.

Stainless steel pneumatic on off ball valve Main performance parameter
Pneumatic actuator: double action, single action normally closed, single action normally open
Accessories: optional directional solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism
Voltage: AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter:DN15-600mm
Nominal pressure: 1.6mpa - 6.4mpa CL150-CL300
Suitable temperature:-30℃~450℃
Connection mode: flange type, thread type, welding type, clamp quick-install type
Valve body structure: O - type floating ball, fixed
Body material:304, 316, 316L, etc
Valve ball material:304, 316, 316L, etc
Seat lining: PTFE, PPL, hard seal, etc
Suitable medium: steam, liquid water, gas, etc
