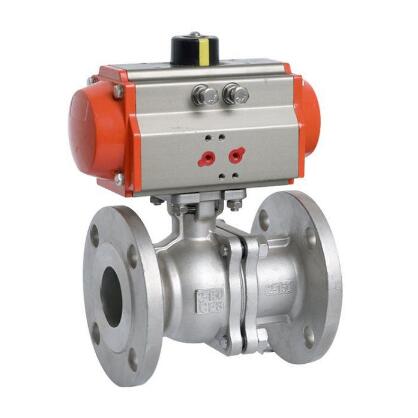

Air Operated Pneumatic Ball Valve Double Acting

Air Operated Pneumatic Ball Valve Double Acting introduction:
Air Operated pneumatic ball valve Double Acting is the composed of ball valve and double acting pneumatic actuator.Air Operated Pneumatic Ball Valve Double Acting has the characteristics of large circulation capacity,compact structure,good sealing performance and long service life,and Air Operated Pneumatic Ball Valve Double Acting is economical, practical and easy to maintain.

Air Operated pneumatic ball valve Double Acting is widely used in petroleum, chemical, natural gas, electric power, metallurgy, food, pharmaceutical and other applications where strict requirements are requiredAir Operated pneumatic ball valve Double Acting can also be applied to water, steam, oil, liquefied gas, natural gas, gas and other media. In addition, fire-resistant and special hardening treatments can be selected according to customers’ requirements.


Air Operated Pneumatic Ball Valve Double Acting Design features:
1. 1S0 5211 platform connection;
2. Stem blowout proof design;
3. Adjustable upper seal function;
4. Fire safe structure design;
5. Ball valve precision casting

Air Operated Pneumatic Ball Valve Double Acting standard:
Chinese GB design standards for Air Actuated Pneumatic Stainless Ball Valve:
1. Design and manufacturing: GB/T-12237;
2. Flange connection: HG/T-20592, G B/ T-911 3;
3. Structure length: GB/T-12221;4. Wall thickness standard: GB/T-26640;
5. Inspection test: GB/T-26480

American Standard design standards for Air Actuated Pneumatic Stainless Ball Valve:
1. Design and manufacturing: API6D / 608;
2. Flange connection with ASME B16.5;
3. Structure length: ASME B16.10;
4. Wall thickness standard ASME B16.34;
5. Inspection test: API598

Air Operated Pneumatic Ball Valve Double Acting pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time


Air Operated Pneumatic Ball Valve Double Acting accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer


Our product range:

Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
