Ball valve manufacturer

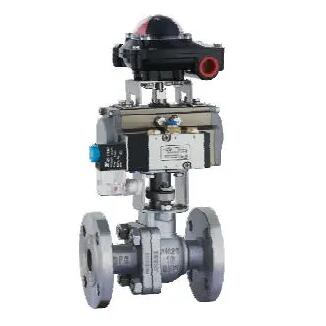

Pneumatic stainless steel ball valve flange end

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:Floating ball
  • Medium:Water,steam,oil,etc.
  • Temperature :-29~150℃
  • Body material:CF8 CF8M CF3 CF3M or other stainless steel
  • Connection:Flange
  • Feature:Accessories:solenoid valve,limited switch,handwheel,Air filter reducer
Pneumatic stainless steel ball valve flange end ball valve introduction:
Pneumatic stainless steel ball valve flange end is on base of CF8 CF8M CF3 CF3M or other stainless steel body pneumatic ball valve,2PC structure with floating ball fesign, Pneumatic stainless steel ball valve flange end is a rotary valve of 90° Angle, excellent sealing performance, large flow coefficient, small flow resistance coefficient, simple structure, long service life, easy maintenance.Equipped with cylinder actuators, ball valve single - action and double - action two models.The pneumatic actuator of Pneumatic stainless steel ball valve flange end adopts AT series piston pneumatic actuator.The pneumatic actuator has the characteristics of small size, light weight, large output force and so on,Pneumatic stainless steel ball valve flange end is widely used in chemical industry, petroleum, light textile, electric power, food pharmaceutical, refrigeration, paper industry system control.

Pneumatic stainless steel ball valve flange end Product Range:
-Valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature for pneumatic ball valve: -46ºC~ 450ºC
Body Materials: CF8 CF8M CF3 CF3M or other stainless steel
Trim: CF8 CF8M CF3 CF3M or other stainless steel
 Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of pneumatic ball valve: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Pneumatic stainless steel ball valve flange end design feature:
-Full port or reduce port
- Fire Safe Design
- Floating ball
-Blowout-proof stem
- Anti-Static Device


Pneumatic stainless steel ball valve flange end pneumatic actuator information:
1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time

Pneumatic stainless steel ball valve flange end accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
Pneumatic ball valve accessories

How to order Pneumatic stainless steel ball valve flange end?
About the Pneumatic stainless steel ball valve flange end body:
1 Size: DN or Inch
2 Pressure standard:
  Chinese standard or DIN standard: PN10 PN16 PN25 PN40 PN64 PN100 PN160 PN320 PN420
ANSI or ASME Standard: 150LB 300LB 600LB 900LB 1500LB 2500LB
3 What is the medium, temperature?
4 what is the ball valve body,ball,seat,shaft material?
5 what is the ball structure,floating ball or trunnion ball, 1PC,2PC or 3PC?

About Pneumatic stainless steel ball valve flange end actuator:
1 the pneumatic ball valve is on-ff type or regulating type?
2 the pneumatic actuator is double acting or single acting?
3 whether need handwheel operation, solenoid valve,limit switch,air regulator?
4 Whether the accessories have the brand requirement, whether need explosion proof type?

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
