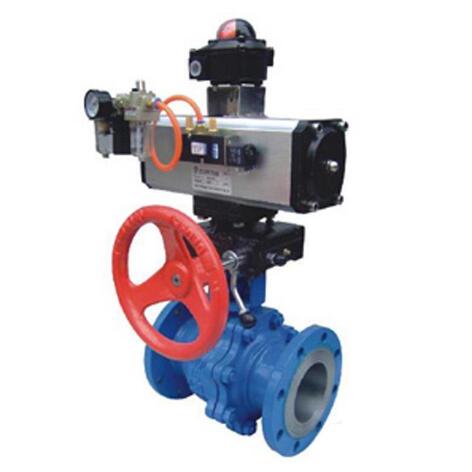

Carbon steel WCB Body pneumatic ball valve introduction:
Carbon steel WCB Body pneumatic ball valve is on base of WCB body,2PC structure with floating ball fesign, Carbon steel WCB
Body pneumatic ball valve is a rotary valve of 90° Angle, excellent sealing performance, large flow coefficient, small flow resistance coefficient, simple structure, long service life, easy maintenance.Equipped with cylinder actuators, ball valve single - action and double - action two models.Carbon steel WCB Body pneumatic ball valve is widely used in chemical industry, petroleum, light textile, electric power, food pharmaceutical, refrigeration, paper industry system control.
The pneumatic actuator of Carbon steel WCB Body pneumatic ball valve adopts AT series piston pneumatic actuator.The pneumatic actuator has the characteristics of small size, light weight, large output force and so on, and the piston and the cylinder block is equipped with a non-metal guide ring with low friction coefficient, to avoid the direct contact between the piston and the cylinder block.The friction is reduced, so the actuator is sensitive and has a long service life.Carbon steel WCB Body pneumatic ball valve has the advantages of simple structure, small volume, light weight, reliable sealing, long life, easy operation and so on.
Carbon steel WCB Body pneumatic ball valve Product Range:
-Valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar
Carbon steel WCB Body pneumatic ball valve design feature:
-Full port or reduce port
- Fire Safe Design
- Floating ball
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
- Anti-Static Device
-Optional double piston design
Carbon steel WCB Body pneumatic ball valve pneumatic actuator information:
| 1). Pressure Range: Max. Working pressure 10bar |
| 2). Air pressure: 2.5bar~8bar |
| 3). Adjustment Range: 90° ± 5° |
| 4). Ambient temperature: -20 ~ +90° C |
| 5). Type: Double-acting, Single-acting (spring return) |
| 6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator |
| 7). Lubrication: All the moving parts are coated with lubricants, extending their service life |
| 8). Life Time: One million time |
Carbon steel WCB Body pneumatic ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
How to order Carbon steel WCB Body pneumatic ball valve?
About the Carbon steel WCB Body pneumatic ball valve body:
1 Size: DN or Inch
2 Pressure standard:
Chinese standard or DIN standard: PN10 PN16 PN25 PN40 PN64 PN100 PN160 PN320 PN420
ANSI or ASME Standard: 150LB 300LB 600LB 900LB 1500LB 2500LB
3 What is the medium, temperature?
4 what is the ball valve body,ball,seat,shaft material?
5 what is the ball structure,floating ball or trunnion ball, 1PC,2PC or 3PC?
About Carbon steel WCB Body pneumatic ball valve actuator:
1 the pneumatic ball valve is on-ff type or regulating type?
2 the pneumatic actuator is double acting or single acting?
3 whether need handwheel operation, solenoid valve,limit switch,air regulator?
4 Whether the accessories have the brand requirement, whether need explosion proof type?
