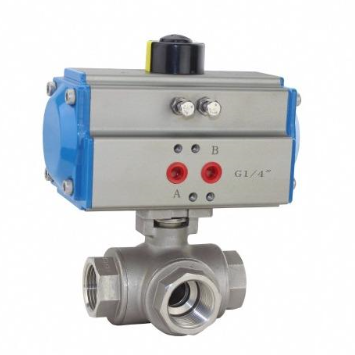

Thread 3 way ball valve with pneumatic actuator

Thread 3 way ball valve with pneumatic actuator introduction:
Thread 3 way ball valve with pneumatic actuator composed of NPT,RC,BSP,G Thread 3 way ball valve and double acting or single acting pneumatic actuator, Thread 3 way ball valve with pneumatic actuator is used for medium diversion, confluent and flow direction switching, any pipe can be used as an inlet or outlet.Thread 3 way ball valve with pneumatic actuator divided into pneumatic  3 way L port ball valve and pneumatic 3 way T port  ball valve, Thread 3 way ball valve with pneumatic actuator can meet different production process requirements.Pneumatic three way L type ball valve is to cut off two of the three pipelines, and pneumatic three way T type ball valve realizes the confluent and diverging of the three connected pipelines.Pneumatic three way regulating ball valve is matched with electric valve positioner, and the operation can be controlled by inputting 4 ~ 20mADC signal and 0.4 ~ 0.7mpa air source, so as to realize the adjustment of pressure, flow, temperature, liquid level and other parameters.Thread 3 way ball valve with pneumatic actuator stroke limit switch, solenoid valve, pressure reducing valve and air source of 0.4-0.7mpa can realize switch operation, and send two pairs of passive contact signals indicating the valve switch.Thread 3 way ball valve with pneumatic actuator is widely used in chemical industry, petroleum, light textile, electric power, food pharmaceutical, refrigeration, aviation, aerospace, papermaking and other industrial fields.

Thread 3 way ball valve with pneumatic actuator product range:
-Ball valve size: 1/2" ~ 2" (DN25-DN50)
-Pressure: ANSI Class 150~600(PN16-PN100)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic automated ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic automated ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Thread 3 way ball valve with pneumatic actuator feature
(1) the fluid resistance is small, and the resistance coefficient is the same as the pipe segment of the same length.
(2) Pneumatic ball valve is simple structure, small volume and light weight.
(3) Compact and reliable, the ball valve sealing material is widely used in plastic, good sealing, in the vacuum system has also been widely used.
(4) Convenient operation, fast opening and closing, from full open to full close only rotation 90°, convenient for remote control.
(5) Easy maintenance, simple ball valve structure, sealing ring is generally active, disassembly and replacement are relatively convenient.
(6) When pneumatic ball valve fully open or fully closed, the sealing surface of the ball and valve seat is isolated from the medium. When the medium passes, it will not cause the erosion of the sealing surface of pneumatic three-way ball valve.
(7) Wide range of application, diameter from small to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.

Thread 3 way ball valve with pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time


Thread 3 way ball valve with pneumatic actuator adopts a new series of pneumatic actuators, with double action type and single action type (spring return), pinion and rack drive, safe and reliable;Large diameter valve using series AW pneumatic actuator fork transmission, reasonable structure, large output torque, double action and single action.
1. Geared double piston with large output torque and small volume.
2. The cylinder is made of aluminum and gold, light in weight and beautiful in appearance.
3. Manual operation mechanism can be installed at the top and bottom.
4, rack type connection can adjust the opening Angle, rated flow.<
5. The actuator can choose feedback indication of live signal and various accessories to realize automatic operation.
6. IS05211 standard connection provides convenience for product installation and replacement.
7. Pitch screws adjusted at both ends can provide ±4° adjustable range for standard products at 0° and 90°.Ensures synchronization accuracy with ball valve.
