Pneumatic Ball Valve at Best Price in China

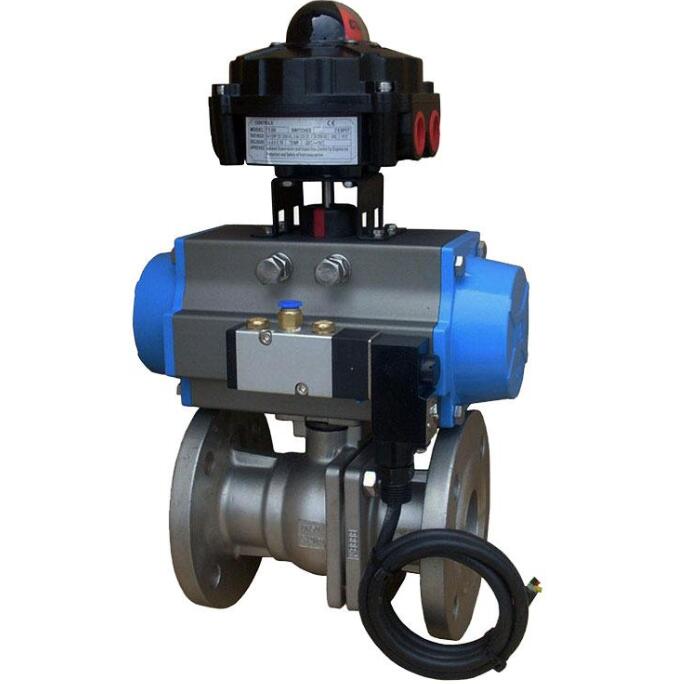

China pneumatic ball valve manufacturer,factory and supplier,Pneumatic Ball Valve at Best Price in China.Pneumatic ball valve uses reversing solenoid valve to control the valve required switch position.Pneumatic Ball Valve Pneumatic actuators can achieve 0 degrees, 90 degrees, 180 degrees three positions, belongs to the standard products.

Pneumatic Ball Valve Feature
1.Pneumatic Ball Valve has the advantages of compact structure, small volume, reliable operation, good sealing, easy maintenance, convenient installation and strong adaptability.
2. Fire resistance, anti - static treatment, valve stem explosion-proof device, to ensure the safety of the system.
3. High platform design in accordance with ISO5211 standard, can be ISO5211 standard actuator, direct connection.Good compatibility
4. Silicon sol precision casting valve body, compact structure, high dimensional accuracy.The appearance of Carbon steel 3 way pneumatic ball valve is exquisite.

Pneumatic Ball Valve Main performance parameter
Pneumatic actuator: double action, single action normally closed, single action normally open
Accessories: optional directional solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism
Voltage: AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter:DN15-600mm
Nominal pressure: 1.6mpa - 6.4mpa CL150-CL300
Suitable temperature:-30℃~450℃
Connection mode: flange type, thread type, welding type, clamp quick-install type
Valve body structure: O - type floating ball, fixed
Body material:WCB, 304, 316, 316L, etc
Valve ball material:WCB, 304, 316, 316L, etc
Seat lining: PTFE, PPL, hard seal, etc
Suitable medium: steam, liquid water, gas, etc

Pneumatic Ball Valve actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time


Pneumatic Ball Valve adopts a new series of pneumatic actuators, with double action type and single action type (spring return), pinion and rack drive, safe and reliable;Large diameter valve using series AW pneumatic actuator fork transmission, reasonable structure, large output torque, double action and single action.
1. Geared double piston with large output torque and small volume.
2. The cylinder is made of aluminum and gold, light in weight and beautiful in appearance.
3. Manual operation mechanism can be installed at the top and bottom.
4, rack type connection can adjust the opening Angle, rated flow.
5. The actuator can choose feedback indication of live signal and various accessories to realize automatic operation.
6. IS05211 standard connection provides convenience for product installation and replacement.
7. Pitch screws adjusted at both ends can provide ±4° adjustable range for standard products at 0° and 90°.Ensures synchronization accuracy with ball valve.
