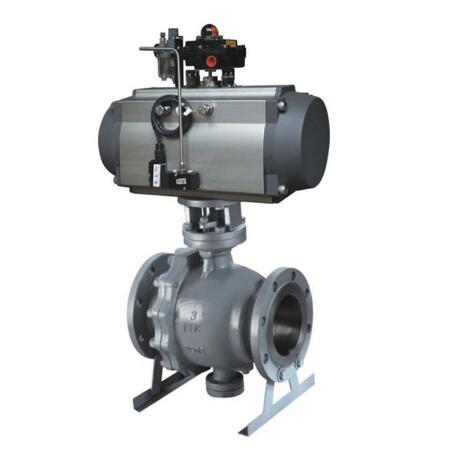

Pneumatic trunnion mounted ball valve

Pneumatic trunnion mounted ball valve introduction:
Pneumatic trunnion mounted ball valve is 2PC or 3 PC structure with trunnion mounted ball fesign made by cast steel or forged steel, Pneumatic trunnion mounted ball valve is a rotary valve of 90° Angle, excellent sealing performance, large flow coefficient, small flow resistance coefficient, simple structure, long service life, easy maintenance.Pneumatic actuator of Pneumatic trunnion mounted ball valve adopts AT series piston pneumatic actuator for small size ball valve or AW series piston pneumatic actuator.Equipped with actuators, ball valve single - action and double - action two models.Pneumatic trunnion mounted ball valve is widely used in chemical industry, petroleum, light textile, electric power, food pharmaceutical, refrigeration, paper industry system control.

Pneumatic trunnion mounted ball valveProduct Range:
-Valve size: 2" ~ 24" (DN50-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
 Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of pneumatic ball valve: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Pneumatic trunnion mounted ball valve pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure of pneumatic ball valve : 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time of pneumatic ball valve: One million time


Pneumatic trunnion mounted ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer


How to order Pneumatic trunnion mounted ball valve?
About the Pneumatic trunnion mounted ball valve:
1 Size: DN or Inch
2 Pressure standard:
  Chinese standard or DIN standard: PN10 PN16 PN25 PN40 PN64 PN100 PN160 PN320 PN420
  ANSI or ASME Standard: 150LB 300LB 600LB 900LB 1500LB 2500LB
  JIS Standard:JIS 5K 10K 16K
3 What is the medium, temperature?
4 what is the ball valve body,ball,seat,shaft material?
5 what is the ball structure trunnion ball,2PC or 3PC?

About Pneumatic trunnion mounted ball valve actuator:
1 the pneumatic ball valve is on-ff type or regulating type?
2 the pneumatic actuator is double acting or single acting?
3 whether need handwheel operation, solenoid valve,limit switch,air regulator?
4 Whether the accessories have the brand requirement, whether need explosion proof type?

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
