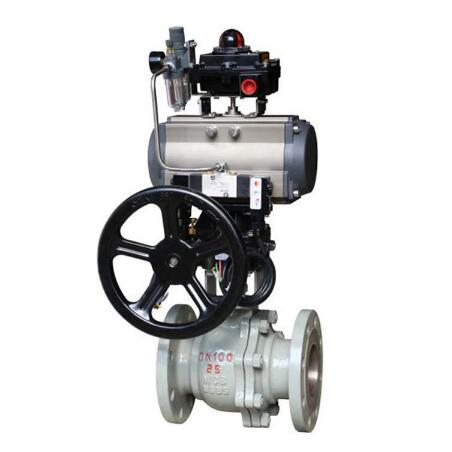

Cast steel Pneumatic actuated ball valve

Cast steel Pneumatic actuated ball valve introduction:
Cast steel Pneumatic actuated ball valve is the composed of ball valve and  pneumatic actuator.Cast steel Pneumatic actuated ball valve has the characteristics of large circulation capacity,compact structure,good sealing performance and long service life,and Cast steel Pneumatic actuated ball valve is economical, practical and easy to maintain.

Cast steel Pneumatic actuated ball valve is widely used in petroleum, chemical, natural gas, electric power, metallurgy, food, pharmaceutical and other applications where strict requirements are required.Cast steel Pneumatic actuated ball valve can also be applied to water, steam, oil, liquefied gas, natural gas, gas and other media. In addition, fire-resistant and special hardening treatments can be selected according to customers’ requirements.


Cast steel Pneumatic actuated ball valve Design features:
1. 1S0 5211 platform connection;
2. Stem blowout proof design;
3. Adjustable upper seal function;
4. Fire safe structure design;
5. Ball valve precision casting

Cast steel Pneumatic actuated ball valve standard:
Chinese GB design standards for Cast steel Pneumatic actuated ball valve:
1. Design and manufacturing: GB/T-12237;
2. Flange connection: HG/T-20592, G B/ T-911 3;
3. Structure length: GB/T-12221;4. Wall thickness standard: GB/T-26640;
5. Inspection test for pneumatic ball valve: GB/T-26480

American Standard design standards for Cast steel Pneumatic actuated ball valve:
1. Design and manufacturing: API6D / 608;
2. Flange connection with ASME B16.5;
3. Structure length: ASME B16.10;
4. Wall thickness standard ASME B16.34;
5. Inspection test for pneumatic ball valve: API598

German standard design standards for Cast steel Pneumatic actuated ball valve:
1. Design and manufacturing: DIN 3357;
2. Flange connection EN 1092-1;
3. Structure length: DIN 3202-F4;
4. Wall thickness standard ASME B16.34;
5. Inspection test for pneumatic ball valve: API598

Japanese standard design standards for Cast steel Pneumatic actuated ball valve:
1. Design and manufacturing: API 6D / 608;
2. Flange connection: JIS B22 20;
3. Structure length ASME B16.10;
4. Wall thickness standard ASME B1 6.34;
5. Inspection test for pneumatic ball valve: API598

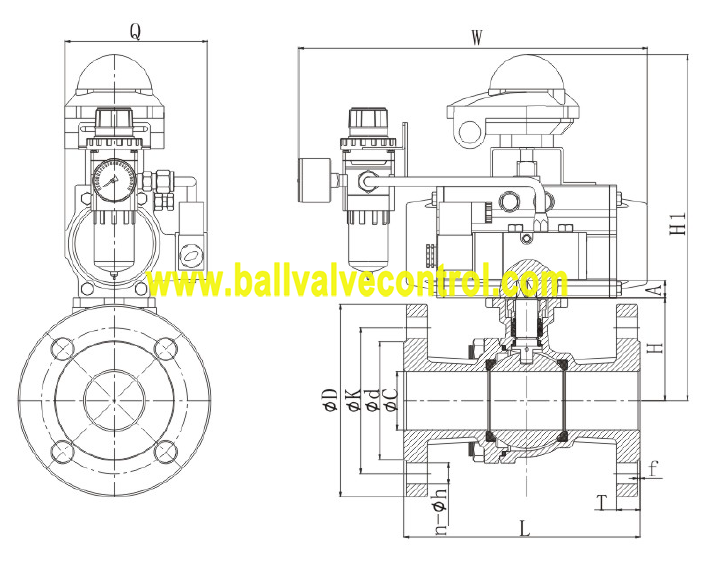

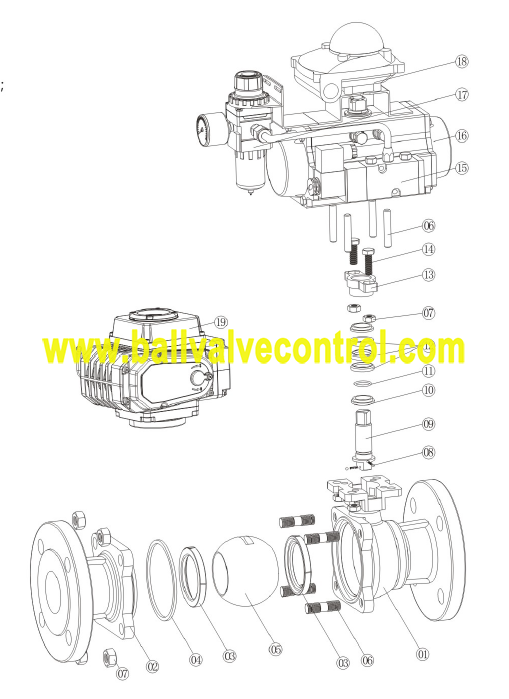

Cast steel Pneumatic actuated ball valve structure:
