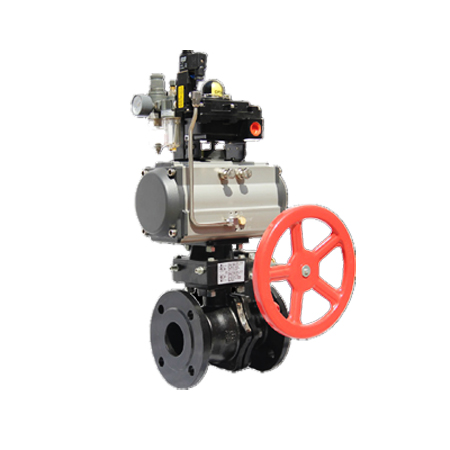

High temperature metal seat pneumatic ball valve

High temperature metal seat pneumatic ball valve introduction
High temperature metal seat pneumatic ball valve has the characteristics of pressure resistance, high temperature resistance, strong shear force and so on.Fixed ball or floating ball core is adopted to reduce the defect of high pressure deformation.The surface of the High temperature metal seat pneumatic ball valve ball is hardened by spray welding, the seat is treated with tungsten nitride, and the High temperature metal seat pneumatic ball valve stem is sealed with pre-pressed graphite disc root to reduce the possibility of leakage.

High temperature metal seat pneumatic ball valve Feature
1. Fixed ball core is adopted to reduce the defect of high pressure deformation
2. Stem seal adopts pre-pressed graphite disc root to reduce the possibility of leakage.
3. The high platform design conforms to ISO5211 standard, which can be directly connected with the ISO5211 standard actuator.Good compatibility
4. Tight structure, high dimensional accuracy.The appearance is exquisite.

High temperature metal seat pneumatic ball valve Main performance parameters
Pneumatic actuator:double action, single action normally closed, single action normally open
Accessories:optional directional solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism
Voltage:AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter: DN15-400mm
Nominal pressure:1.6mpa ~ 6.4mpa
Applicable temperature:≤ 450℃
Connection mode: flange type, thread, welding, etc
Valve body structure: O - type floating ball, fixed
Body material: WCB, 304, 316, 316L, etc
Valve ball:WCB, 304, 316, 316L, etc
Seat lining:hard seal, STL and other alloys
Applicable medium: high temperature steam, high temperature gas, etc

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
