Ball valve manufacturer

Flange end pneumatic floating ball valve

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN420 CL150-CL2500
  • Structure:Floating,full bore
  • Medium:Water,steam,oil,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
  • Connection:Flange
  • Feature:Pnuematic actuated:double or single acting
Flange end pneumatic floating ball valve introduction:
Flange end pneumatic floating ball valve is the composed of floating ball valve and  pneumatic actuator.The Flange end pneumatic floating ball valve has the characteristics of large circulation capacity,compact structure,good sealing performance and long service life,and Flange end pneumatic floating ball valve is economical, practical and easy to maintain.

Flange end pneumatic floating ball valve is widely used in petroleum, chemical, natural gas, electric power, metallurgy, food, pharmaceutical and other applications where strict requirements are required.Flange end pneumatic floating ball valve can also be applied to water, steam, oil, liquefied gas, natural gas, gas and other media. In addition, fire-resistant and special hardening treatments for pneumatic ball valve can be selected according to customers’ requirements.

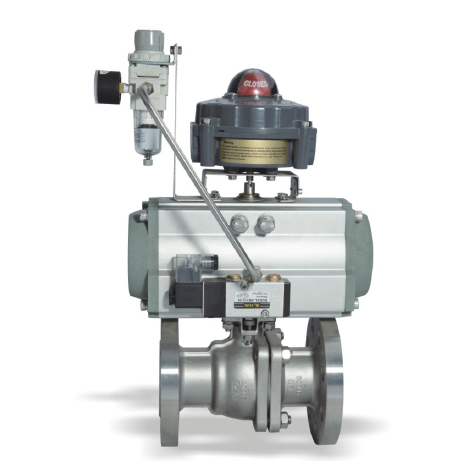

Flange end pneumatic floating ball valve
Flange end pneumatic floating ball valve Design features:
1. 1S0 5211 platform connection;
2. Stem blowout proof design;
3. Adjustable upper seal function;
4. Fire safe structure design;
5. Ball valve precision casting

Flange end pneumatic floating ball valve standard:
Chinese GB design standards for Flange end pneumatic floating ball valve:
1. Design and manufacturing: GB/T-12237;
2. Flange connection: HG/T-20592, G B/ T-911 3;
3. Structure length: GB/T-12221;4. Wall thickness standard: GB/T-26640;
5. Inspection test for pneumatic ball valve: GB/T-26480

American Standard design standards for Flange end pneumatic floating ball valve:
1. Design and manufacturing: API6D / 608;
2. Flange connection with ASME B16.5;
3. Structure length: ASME B16.10;
4. Wall thickness standard ASME B16.34;
5. Inspection test for pneumatic ball valve: API598

German standard design standards for Flange end pneumatic floating ball valve
1. Design and manufacturing: DIN 3357;
2. Flange connection EN 1092-1;
3. Structure length: DIN 3202-F4;
4. Wall thickness standard ASME B16.34;
5. Inspection test for pneumatic ball valve: API598

Japanese standard design standards for Flange end pneumatic floating ball valve
1. Design and manufacturing: API 6D / 608;
2. Flange connection: JIS B22 20;
3. Structure length ASME B16.10;
4. Wall thickness standard ASME B1 6.34;
5. Inspection test for pneumatic ball valve: API598

Flange end pneumatic floating ball valve structure:
Flange end pneumatic floating ball valve structure


Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
