Ball valve manufacturer

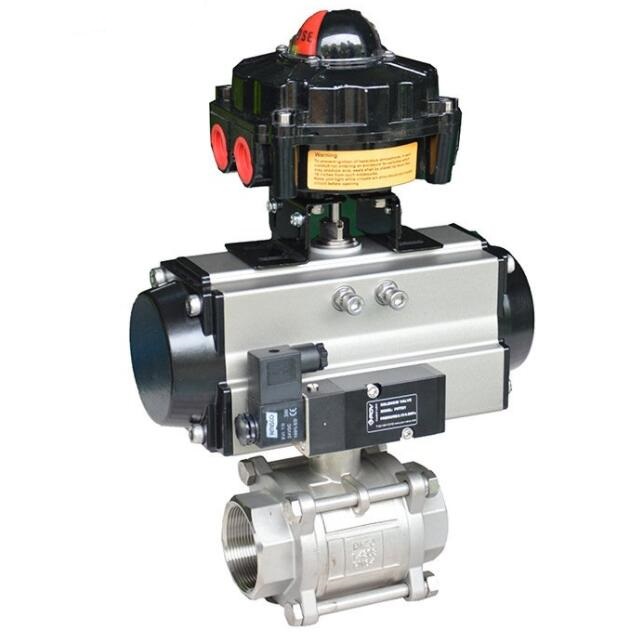

China stainless steel air actuated ball valve

Port size：DN15-DN600;1/2''-24''
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Stainless Steel
Connection：Flanged,welded,threaded.
Feature：Different connection is optional

Product Description

China stainless steel air actuated ball valve manufacturer,factory and supplier,China stainless steel air actuated ball valve is composed of double acting or single acting pneumatic actuator and ball valve for automatic control system.stainless steel air actuated ball valve can be equipped with travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to achieve switch operation, and send two pairs of passive contact signals indicating the valve switch.Stainless steel air actuated ball valve is particularly suitable for the medium is viscous, containing particles, fiber properties of the occasion.Stainless steel air actuated ball valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, papermaking and other industrial automatic control system, for remote centralized control or local control.

China Stainless steel air actuated Ball Valve Feature
1.Stainless steel air actuated ball valve has the advantages of compact structure, small volume, reliable operation, good sealing, easy maintenance, convenient installation and strong adaptability.
2. Fire resistance, anti - static treatment, valve stem explosion-proof device, to ensure the safety of the system.
3. High platform design in accordance with ISO5211 standard,Stainless steel air actuated ball valve can be ISO5211 standard actuator, direct connection.Good compatibility
4. Silicon sol precision casting valve body, compact structure, high dimensional accuracy.The appearance of Stainless steel air actuated ball valve is exquisite.

China Stainless steel air actuated Ball Valve Main performance parameter
Pneumatic actuator: double action, single action normally closed, single action normally open
Accessories: optional directional solenoid valve, limit switch, air filter pressure reducing valve, electric positioner, handwheel mechanism
Voltage: AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter:DN15-600mm
Nominal pressure: 1.6mpa - 6.4mpa CL150-CL300
Suitable temperature:-30℃~450℃
Connection mode: flange type, thread type, welding type, clamp quick-install type
Valve body structure: O - type floating ball, fixed
Body material:WCB, 304, 316, 316L, etc
Valve ball material:WCB, 304, 316, 316L, etc
Seat lining: PTFE, PPL, hard seal, etc
Suitable medium: steam, liquid water, gas, etc

China Stainless steel air actuaed Ball Valve actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time
