Ball valve manufacturer

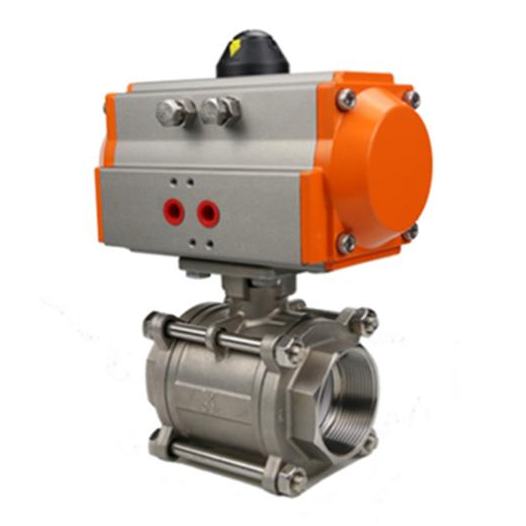

Pneumatic actuated ball water valve

Port size：1/2"~24" (DN15~DN600)
Pressure：PN10-PN100 CL150-CL600
Structure：Floating,full bore
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：Flange,Thread,SW,BW is optional
Feature：Differnt connection end for water system

Product Description

Pneumatic actuated ball water valve introduction:
Pneumatic actuated ball water valve is composed of double acting or single acting pneumatic actuator and ball valve for water automatic control system.Pneumatic actuated ball water valve can be equipped with travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to achieve switch operation, and send two pairs of passive contact signals indicating the valve switch.Pneumatic actuated ball water valve is particularly suitable for the medium is viscous, containing particles, fiber properties of the occasion.Pneumatic actuated ball water valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, papermaking and other industrial automatic control system, for remote centralized control or local control.

Pneumatic actuated ball water valve product range:
-Ball valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Pneumatic actuated ball water valve pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time

Pneumatic actuated ball water valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
