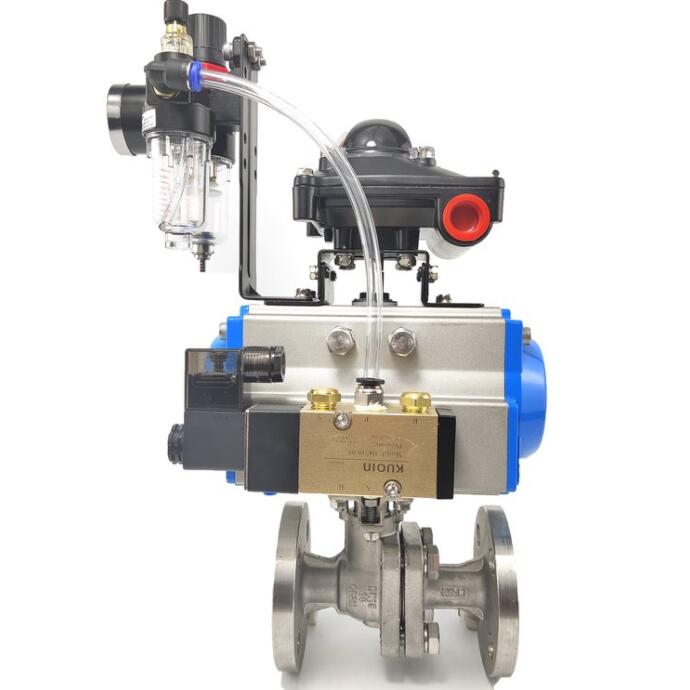

2 inch DN50 50mm Pneumatic ball valve

Port size：2" (DN50)
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Carbon Steel, Stainless Steel,forged steel
Connection：Flanged,welded,threaded.
Feature：Single acting or double acting is optional.

Product Description

2 inch DN50 50mm Pneumatic ball valve is composed of double acting or single acting pneumatic actuator and ball valve for automatic control system.2 inch DN50 50mm Pneumatic ball valve can be equipped with travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to achieve switch operation, and send two pairs of passive contact signals indicating the valve switch.2 inch DN50 50mm Pneumatic ball valve is particularly suitable for the medium is viscous, containing particles, fiber properties of the occasion.2 inch DN50 50mm Pneumatic ball valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, papermaking and other industrial automatic control system, for remote centralized control or local control.

2 inch DN50 50mm Pneumatic ball valve product range:
-Ball valve size: 2" (DN50)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

2 inch DN50 50mm Pneumatic ball valve actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time

2 inch DN50 50mm Pneumatic ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
