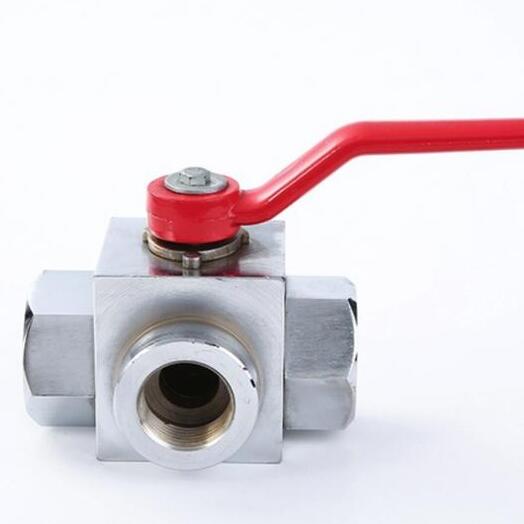

KHB3K 3 way hydraulic ball valve

KHB3K 3 way hydraulic ball valve is full port design with 3 way T port or L port structure according to customer's requirement.KHB3K 3 way hydraulic ball valve is the product of the hydraulic system pipeline.pressure range from PN315 to PN500 bar, size from DN6 to DN50.

KHB3K 3 way hydraulic ball valve Features:

3 way full port

PN 315 bar to500 bar

DN6 mm to 50mm

Size1/8"to 2"

Male /Female thread

BSP/NPT/PT/Connectors

Carbon steel material

NBR/FPM Airproof

Applicable to hydraulic oil


KHB3K 3 way hydraulic ball valve Specifications:

1. Series Code: KHB3K(BK3) Series Two-Position Three-Way Ball Valve

2. Joint Code: G**, **LR, **SR, PT**, NPT**

3. Valve Body Material: 1-Steel

4. Ball Body Material: 1-Steel, 2-Brass

5. Operating Temperature: 1. -25~+100℃, 2. -30~+170℃

6. Other Airproof: 2-NBR, 4-FPM

7. Handle Type: 02-Aluminium Crooked Handle, 04-Casting Zinc Crooked Handle, 06-Steel Crooked Handle, 09-Without Handle

8. Design Number: To Be Decided By The Manufacturer

9. Surface Disposal: Blank-Phosphoric Polish, G-Electroplated Yellow Zinc

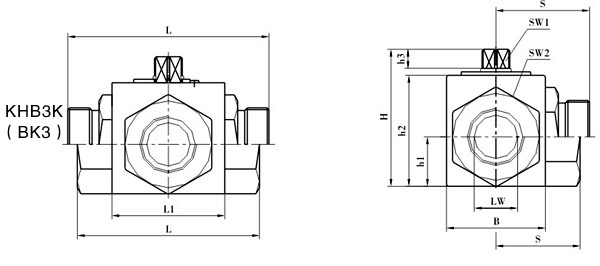

KHB3K 3 way hydraulic ball valve Overall Dimension:

KHB3K 3 way hydraulic ball valve Dimension Sheet:
