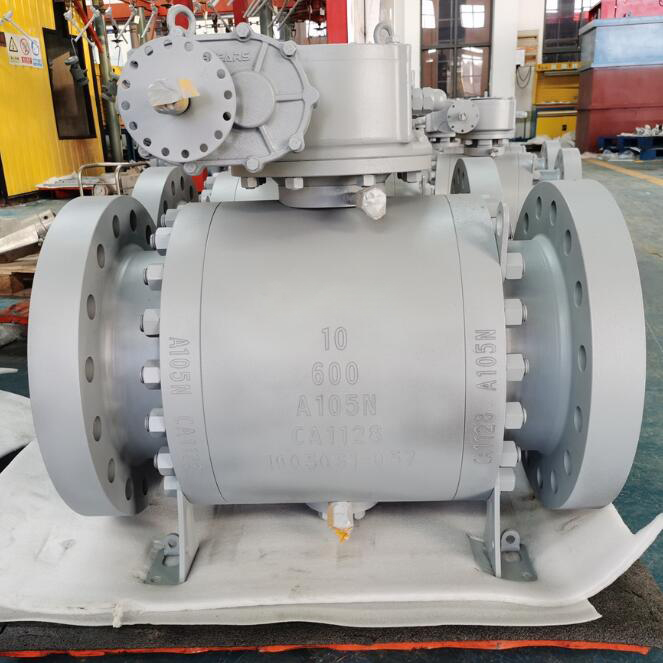

Trunnion mounted ball valve 10 Inch 600LB

Port size：10 Inch
Pressure：600LB
Structure：Trunnion mounted ball
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：A105 LF2 F304 F316 F316L or others
Connection：Flange
Feature：Professional trunnion ball valve manufacturer

Product Description

China Trunnion mounted ball valve manufacturer,factory,company and supplier for Trunnion mounted ball valve 10 Inch 600LB with full bore or reduced bore, 2PC or 3PC,side entry for different industries.

Trunnion mounted ball valve 10 Inch 600LB specification:

Design standard: API 6D.
Body material: A105N
Nominal diameter: 10 Inch.
Pressure: 600LB
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+427℃.
Test and inspection: API 598.

Trunnion mounted ball valve 10 Inch 600LB other option:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

Trunnion mounted ball valve 10 Inch 600LB Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Trunnion mounted ball valve 10 Inch 600LB Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
