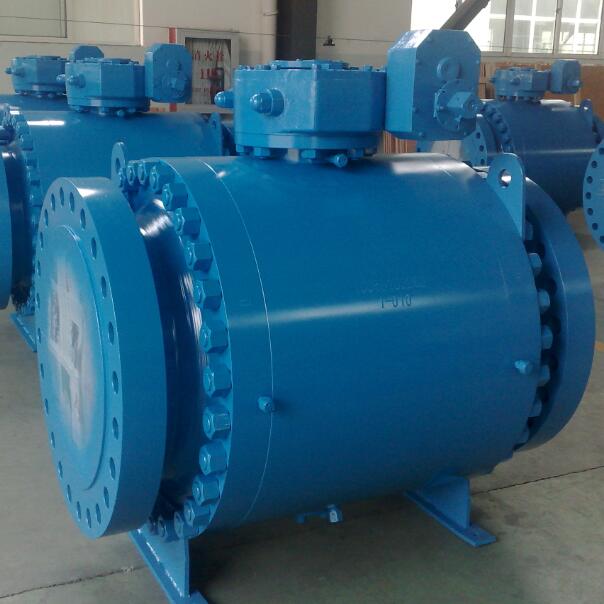

A105N 28 Inch 900LB Trunnion ball valve

Port size：28 Inch
Pressure：900LB
Structure：Trunnion mounted ball
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：A105N or others
Connection：Flange
Feature：Different material,pressure and size is optional

Product Description

China Trunnion mounted ball valve manufacturer,factory,company and supplier for A105N 28 Inch 900LB Trunnion ball valve with different pressure from 150LB to 2500LB,full bore or reduced bore,3PC,side entry for different industries.

A105N 28 Inch 900LB Trunnion ball valve specification:

Design standard: API 6D.
Body material: Forged steel A105N
Nominal diameter: 28 Inch.
Pressure: 900LB
End connection: RF,RTJ.
Face to face: ASME B16.10.
Working temperature: -29℃~+427℃.
Test and inspection: API 598.

A105N 28 Inch 900LB Trunnion ball valve other option:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

A105N 28 Inch 900LB Trunnion ball valve Technical Specifications

-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

A105N 28 Inch 900LB Trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
