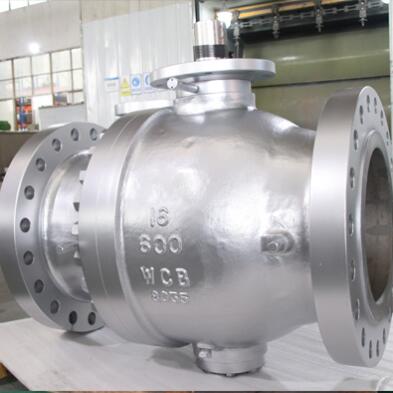

Trunnion ball valve 16 inch 600LB WCB

Port size：16 inch ball valve
Pressure：600LB
Structure：2PC,Trunnion mounted
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：WCB or other material is optional
Connection：Flange
Feature：2PC/3PC,Side entry/top entry,forged/cast is optional

Product Description

China Trunnion mounted ball valve manufacturer,factory,company and supplier for Trunnion ball valve 16 inch 600LB WCB with full bore or reduced bore, 2PC or 3PC,side entry for different industries.

Trunnion ball valve 16 inch 600LB WCB specification:

Design standard: API 6D.
Body material: Cast steel WCB
Nominal diameter: 16 Inch.
Pressure: 600LB
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+427℃.
Test and inspection: API 598.

Trunnion ball valve 16 inch 600LB WCB other option:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

Trunnion ball valve 16 inch 600LB WCB Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Trunnion ball valve 16 inch 600LB WCB Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
