Ball valve manufacturer

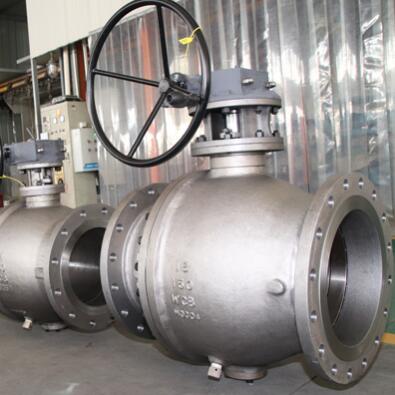

2PC 16 Inch trunnion ball valve 150LB

Port size：16 inch ball valve
Pressure：150LB
Structure：Trunnion mounted ball
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：WCB A105 LF2 F304 F316 F316L or others
Connection：Flange
Feature：2PC/3PC,forged/cast steel

Product Description

China Trunnion mounted ball valve manufacturer,factory,company and supplier for 2PC 16 Inch trunnion ball valve 150LB with different material,full bore or reduced bore,side entry for different industries.

2PC 16 Inch trunnion ball valve 150LB specification:

Design standard: API 6D.
Body material: Cast steel WCB
Nominal diameter: 16 Inch.
Pressure: 150LB
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+427℃.
Test and inspection: API 598.

2PC 16 Inch trunnion ball valve 150LB other option:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

2PC 16 Inch trunnion ball valve 150LB Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

2PC 16 Inch trunnion ball valve 150LB Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
