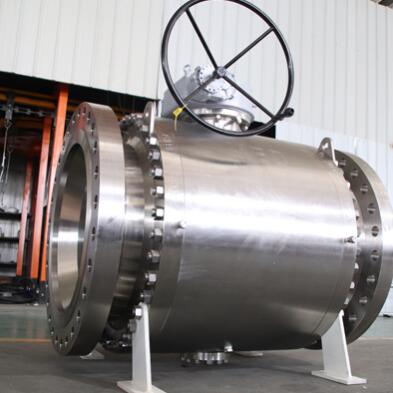

26 Inch F316 Forged trunnion ball valve

Port size：26 inch ball valve
Pressure：CL150-CL2500
Structure：Trunnion mounted ball
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：F316 or others
Connection：Flange
Feature：

Product Description

China Trunnion mounted ball valve manufacturer,factory,company and supplier for 26 Inch F316 Forged trunnion ball valve with different pressure from 150LB to 2500LB,full bore or reduced bore,3PC,side entry for different industries.

26 Inch F316 Forged trunnion ball valve specification:

Design standard: API 6D.
Body material: Forged steel F316
Nominal diameter: 26 Inch.
Pressure: 150LB-2500LB
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+427℃.
Test and inspection: API 598.

26 Inch F316 Forged trunnion ball valve other option:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

26 Inch F316 Forged trunnion ball valve Technical Specifications

-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

26 Inch F316 Forged trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
