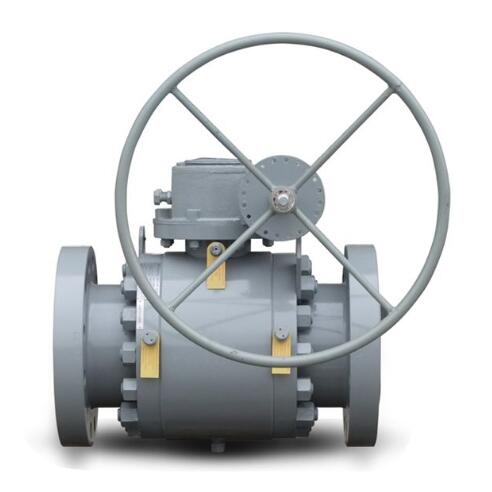

A105 18 Inch Trunnion Mounted Ball Valve

Port size：18 inch
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：A105 or other forged steel
Connection：Flanged end or others
Feature：Customized for client's requirement

Product Description

A105 18 Inch Trunnion Mounted Ball Valve,China Trunnion mounted ball valve manufacturer,factory,company and supplier for A105 18 Inch Trunnion Mounted Ball Valve with different material,full bore or reduced bore,side entry for different industries.

A105 18 Inch Trunnion Mounted Ball Valve specification:

Design standard: API 6D.
Body material: Forged steel A105 or other material
Nominal diameter: 18 Inch.
Pressure: 150LB-2500LB
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+427℃.
Test and inspection: API 598.

A105 18 Inch Trunnion Mounted Ball Valve other option:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

A105 18 Inch Trunnion Mounted Ball Valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

A105 18 Inch Trunnion Mounted Ball Valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
