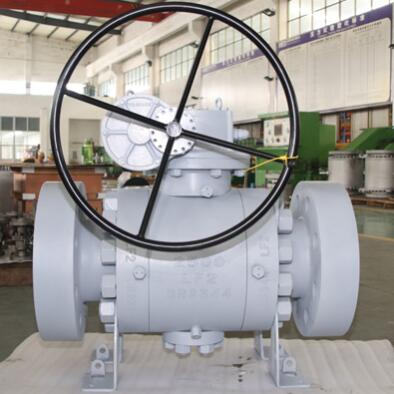

2500LB LF2 6 Inch Trunnion ball valve

Port size：6 inch ball valve
Pressure：2500LB
Structure：Trunnion mounted ball
Medium：Water,steam,oil,gas,etc.
Temperature :-40～200℃
Body material：LF2 or others
Connection：Flange
Feature：For high pressure medium

Product Description

China Trunnion mounted ball valve manufacturer,factory,company and supplier for 2500LB LF2 6 Inch Trunnion ball valve,full bore or reduced bore,3PC,side entry for different industries.

2500LB LF2 6 Inch Trunnion ball valve specification:

Design standard: API 6D.
Body material: Forged steel LF2
Nominal diameter: 6 Inch.
Pressure: 2500LB
End connection: RTJ.
Face to face: ASME B16.10.
Working temperature: -29℃~+427℃.
Test and inspection: API 598.

2500LB LF2 6 Inch Trunnion ball valve other option:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

2500LB LF2 6 Inch Trunnion ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

2500LB LF2 6 Inch Trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
