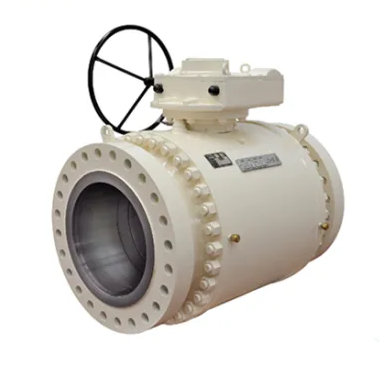

A105 150LB 300LB 600LB 900LB trunnion ball valve

A105 150LB 300LB 600LB 900LB trunnion ball valve introduction:
A105 150LB 300LB 600LB 900LB trunnion ball valve is designed in accordance with API 6D featuring 2 PC or 3 PC split body, side entry or top entry design. A105 150LB 300LB 600LB 900LB trunnion ball valve is wide range of sealing material including PTFE, PEEK, DEVLON, NYLON, etc, A105 150LB 300LB 600LB 900LB trunnion ball valve can be used in working temperature range -46ºC~ 500ºC. A105 150LB 300LB 600LB 900LB trunnion ball valve is optional designed with Double block and bleed or double piston type. A105 150LB 300LB 600LB 900LB trunnion ball valve is equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage. The top entry ball valve can be used for in-line maintenance services.

A105 150LB 300LB 600LB 900LB trunnion ball valve specification:

Size	NPS 2″ - NPS 56″
Pressure Rating	Class 150LB - Class900LB
Material	WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design & Manufacturing Standard	API 608, API 6D, BS 5351, ASME B16.34, DIN, GOST, JIS
Fact to Face	ASME B16.5, API 6D
End Connection	ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection	ISO 5208, API 6D
Operation Method	Manual, Worm Gear, Electric Actuator, Pneumatic Actuator


A105 150LB 300LB 600LB 900LB trunnion ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

A105 150LB 300LB 600LB 900LB trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design

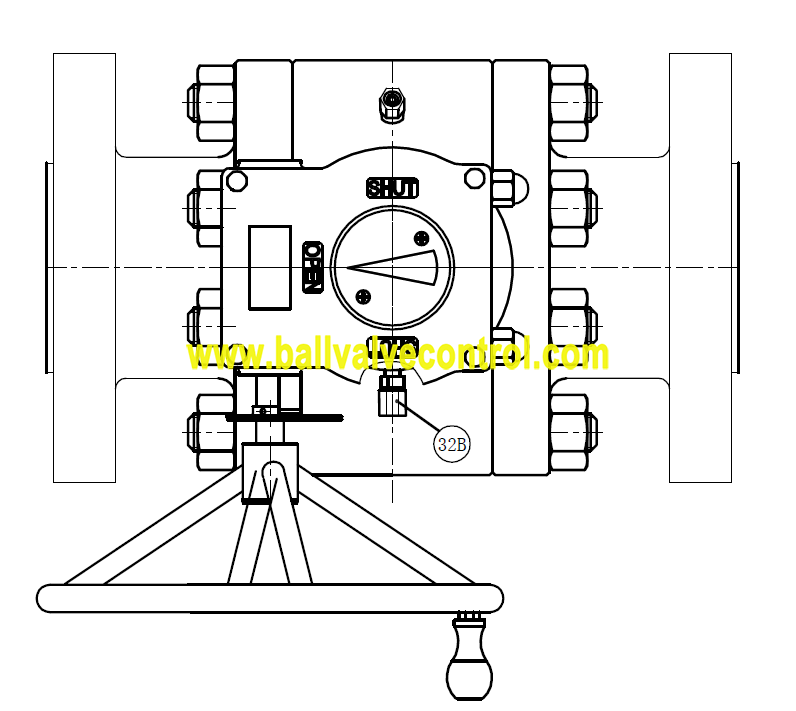

A105 150LB 300LB 600LB 900LB trunnion ball valve outline structure

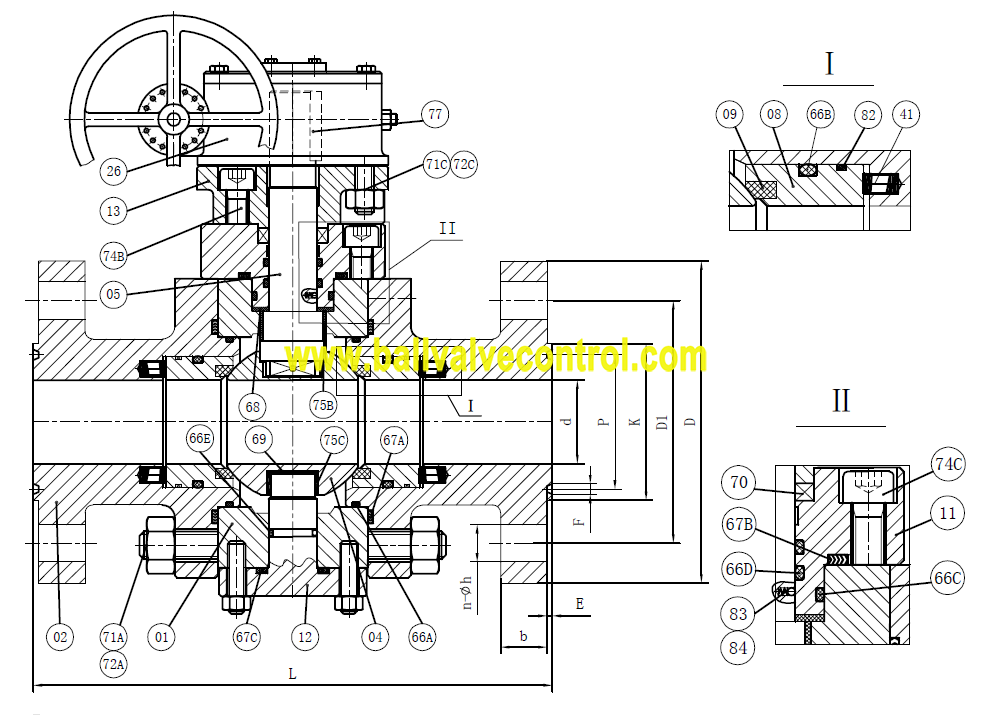

A105 150LB 300LB 600LB 900LB trunnion ball valve drawing and inner structure
