Forged steel F304 F304L F316 F316L trunnion ball valve

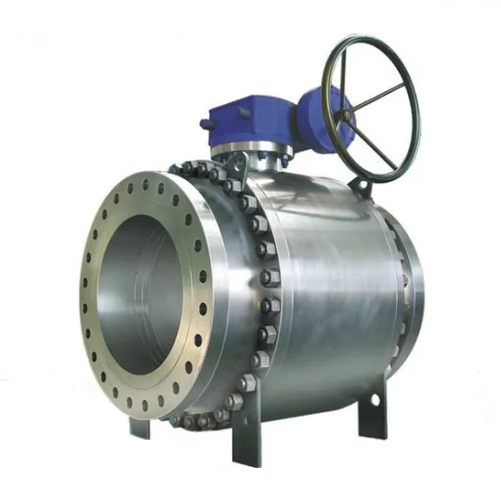

Forged steel F304 F304L F316 F316L trunnion ball valve introduction:
Forged steel F304 F304L F316 F316L trunnion ball valve is designed in accordance with API 6D featuring 3 PC split body, side entry or top entry design with forged steel F304 F304L F316 F316L or other material. Forged steel F304 F304L F316 F316L trunnion ball valve is wide range of sealing material including PTFE, PEEK, DEVLON, NYLON, etc,Forged steel F304 F304L F316 F316L trunnion ball valve can be used in working temperature range -46ºC~ 500ºC.API 6D Stainless steel trunnion mounted ball valve is optional designed with Double block and bleed or double piston type. Forged steel F304 F304L F316 F316L trunnion ball valve is equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage. The top entry trunnion mounted ball valve can be used for in-line maintenance services.

Forged steel F304 F304L F316 F316L trunnion ball valve specification:

Trunnion mounted ball valve Size	NPS 2″ - NPS 56″
Pressure Rating	Class 150LB - Class2500LB
Material	WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design & Manufacturing Standard	API 608, API 6D, BS 5351, ASME B16.34, DIN, GOST, JIS
Fact to Face	ASME B16.5, API 6D
End Connection	ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection	ISO 5208, API 6D
Operation Method	Manual, Worm Gear, Electric Actuator, Pneumatic Actuator


Forged steel F304 F304L F316 F316L trunnion ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Forged steel F304 F304L F316 F316L trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design

Forged steel F304 F304L F316 F316L trunnion ball valve material

No.	Parts Name	Material
1	Body	ASTM A351-CF8/CF8M
2	Fire safe packing	Graphite
3	O-ring	Viton
4	Spring seat	ASTM A182-F304/F316
5	Spring	17-7PH/Inconel
6	Gasket	ASTM A182-F304/F316
7	Adjusting ring	ASTM A182-F304/F316
8	Seat ring	ASTM A182-F304/F316
9	Seat	PTFE/RPTFE/NYLON
10	Trunnion	ASTM A182-F304/F316
11	Screw	ASTM A193-B8/B8M
12	Drain plug	ASTM A182-F304/F316
13	Sliding bearing	304+PTFE/316+PTFE
14	Ball	ASTM A182-F304/F316
15	sealant injection	ASTM A182-F304/F316
16	Sliding bearing	304+PTFE/316+PTFE
17	Stem	ASTM A182-F304/F316
18	Packing	Graphite
19	Gasket	304+Graphite/316+Graphite
20	Gasket	304+Graphite/316+Graphite
21	Bonnet	ASTM A351-CF8/CF8M
22	Bolt	ASTM A193-B8/B8M
23	Nut	ASTM A194-8/8M
24	Packing case	ASTM A182-F304/F316
25	Screw	ASTM A193-B8/B8M
26	Fire safe packing	Graphite
27	Pin	304/316
28	Gland	ASTM A182-F304/F316
29	Release valve	ASTM A182-F304/F316
