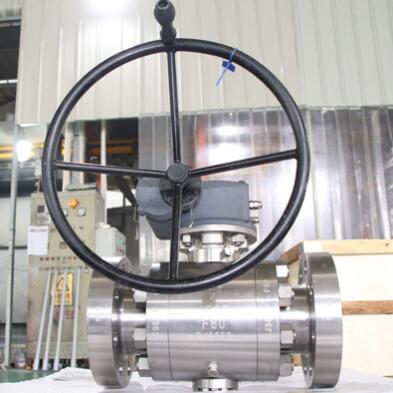

A182 F60 Trunnion ball valve 4 Inch

Port size：4 inch ball valve
Pressure：CL150-CL2500
Structure：Trunnion mounted ball
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：A182 F60 or others
Connection：Flange
Feature：F51 F53 F55 F60 Suplex steel is optional

Product Description

China Trunnion mounted ball valve manufacturer,factory,company and supplier for A182 F60 Trunnion ball valve 4 Inch with different pressure, full bore or reduced bore, 3PC,side entry for different industries.

A182 F60 Trunnion ball valve 4 Inch specification:

Design standard: API 6D.
Body material: A182 F60
Nominal diameter: 4 Inch.
Pressure: 150LB-2500 LB
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+427℃.
Test and inspection: API 598.

A182 F60 Trunnion ball valve 4 Inch other option:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

A182 F60 Trunnion ball valve 4 Inch Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

A182 F60 Trunnion ball valve 4 Inch Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
