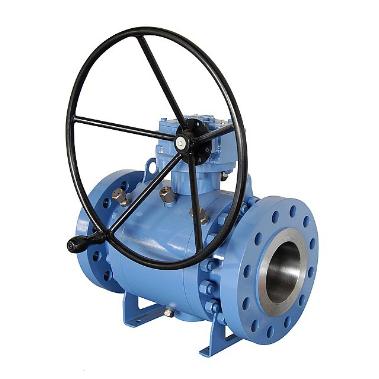

Cast steel LCB LCC Flange trunnion mounted ball valve

Cast steel LCB LCC Flange trunnion mounted ball valve introduction:
Cast steel LCB LCC Flange trunnion mounted ball valve is for low temperature medium,which is designed in accordance with API 6D featuring 3 PC split body, side entry or top entry design with forged steel LCB LCC or other material.Cast steel LCB LCC Flange trunnion mounted ball valve is wide range of sealing material including PTFE, PEEK, DEVLON, NYLON, etc,Cast steel LCB LCC Flange trunnion mounted ball valve can be used in working temperature range -46ºC~ 200ºC.Cast steel LCB LCC Flange trunnion mounted ball valve is optional designed with Double block and bleed or double piston type. Cast steel LCB LCC Flange trunnion mounted ball valve is equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage. The top entry ball valve can be used for in-line maintenance services.

Cast steel LCB LCC Flange trunnion mounted ball valve specification:

Size	NPS 2″ - NPS 56″
Pressure Rating	Class 150LB - Class2500LB
Material	WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design & Manufacturing Standard	API 608, API 6D, BS 5351, ASME B16.34, DIN, GOST, JIS
Fact to Face	ASME B16.5, API 6D
End Connection	ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection	ISO 5208, API 6D
Operation Method	Manual, Worm Gear, Electric Actuator, Pneumatic Actuator


Cast steel LCB LCC Flange trunnion mounted ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Forged steel F304 F304L F316 F316L trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design

Cast steel LCB LCC Flange trunnion mounted ball valve material

No.	Part name	Material
1	Body	ASTM A352-LCB/LCC
2	Fire safe packing	Graphite
3	O-ring	Viton
4	Spring seat	ASTM A350-LF2+ ENP
5	Spring	17-7PH/Inconel
6	Gasket	ASTM A350-LF2+ ENP
7	Adjusting ring	ASTM A350-LF2+ ENP
8	Seat ring	ASTM A350-LF2+ENP
9	Seat	PTFE/RPTFE/NYLON
10	Trunnion	ASTM A182-F304
11	Screw	ASTM A320 L7
12	Drain plug	ASTM A182-F304
13	Sliding bearing	304+PTFE
14	Ball	ASTM A350-LF2+ENP
15	sealant injection	ASTM A182-F304
16	Sliding bearing	304+PTFE
17	Stem	ASTM A182-F304
18	Packing	Graphite
19	Gasket	304+Graphite
20	Gasket	304+Graphite
21	Bonnet	ASTM A352-LCB/LCC
22	Bolt	ASTM A320 L7
23	Nut	ASTM A194 4
24	Packing case	ASTM A182-F304
25	Screw	ASTM A320 L7
26	Fire safe packing	Graphite
27	Pin	ANSI 1045
28	Gland	ASTM A350-LF2/LF3
29	Release valve	ASTM A182-F304
