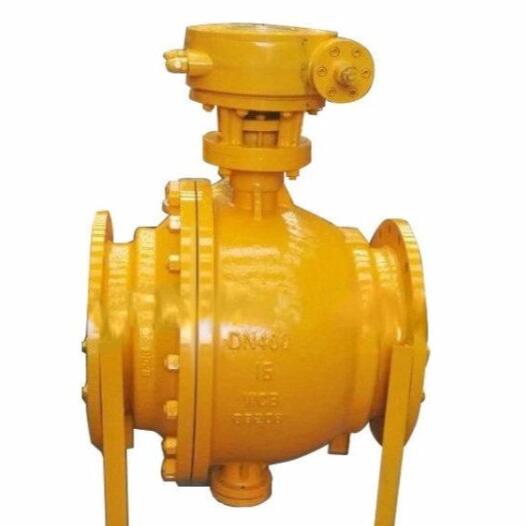

Large diameter trunnion ball valve

Port size：2"~56" (DN50~DN1200)
Pressure：CL150-CL2500
Structure：Trunnion mounted ball
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：WCB A105 CF8 CF8M F304 F316 F316L or others
Connection：Flange or others
Feature：Large ball valve,big ball valve factory

Product Description

Large diameter trunnion ball valve,China Trunnion mounted ball valve manufacturer,factory,company and supplier for Large diameter trunnion ball valve with cast steel or forged steel,full bore or reduced bore,2PC or 3 PC,side entry for different industries.

Large diameter trunnion ball valve specification:

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~56" (DN50~DN1200).
End connection: BW, Flanged.
Pressure range: 150 LB~2500 LB (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+200℃.

Large diameter trunnion ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Large diameter trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
