Ball valve manufacturer

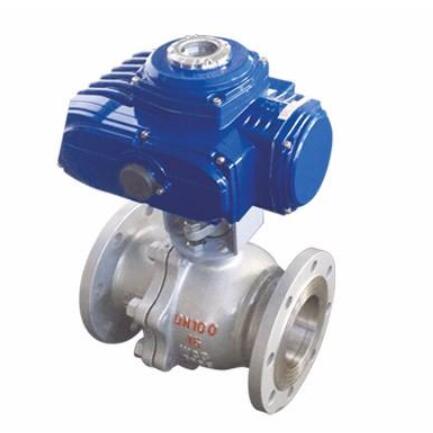

Carbon steel WCB electric actuated ball valve

Port size：1/2'' ~ 24''( 15mm ~ 600mm)
Pressure：PN16 ~ 100,150LB ~ 600LB
Structure：Full bore, floating,2PC
Medium：Water,oil,steam,gas
Temperature :-29～150℃
Body material：WCB or Other material
Connection：Flange
Feature：Actuator: switch type, integral type, adjusting type, intelligent type

Product Description

Carbon steel WCB electric actuated ball valve introduction:

Carbon steel WCB electric actuated ball valve is composed of 2PC floating ball full bore ball valve and on-off or reguating electric actuated actuator,Carbon steel WCB electric actuated ball valve is a rotary valve of 90° Angle, excellent sealing performance, large flow coefficient, small flow resistance coefficient, simple structure, long service life, easy maintenance.Carbon steel WCB electric actuated ball valve equipped with on off or regulating type actuators, differnt actuator is for choice according to the client site requirement.,Carbon steel WCB electric actuated ball valve is widely used in industrial automatic control system of food, environmental protection, light industry, petroleum, paper making, chemical industry, teaching and scientific research equipment, electric power and other industries.

Carbon steel WCB electric actuated ball valve Product Range:

-Valve size: 1/2" ~ 24" (DN15-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature for electric ball valve: -46ºC~ 450ºC
Body Materials: WCB or other material
Trim: CF8
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of electric ball valve: ISO5211

Carbon steel WCB electric actuated ball valve design feature:

-Full port or reduce port
- Fire Safe Design
- Floating ball
-Blowout-proof stem
- Anti-Static Device

Carbon steel WCB electric actuated ball valve technical parameter:

Optional functions of electric actuator	switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator	QM, QC series
Voltage	AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter	DN15mm ~ DN600mm
Nominal pressure	PN1.0MPa~PN10MPa,CL150-CL600
Applicable temperature	PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃
Connection mode	thread
electric ball valve Body material	WCB,304, 316, 316L or other material
electric ball valve ball material	304, 316, 316L
Seat lining	PTEE, PPL, metal seal
electric ball valve Suitable medium	water, petroleum, acid, viscous fluid, slurry medium, etc.

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
