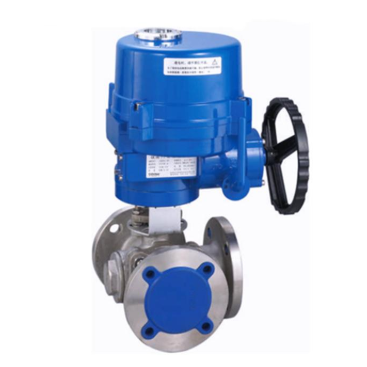

3 Way electric motorized ball valve

Port size：1/2"~12" (DN15~DN300)
Pressure：PN10-PN64 CL150-CL600
Structure：3 way:T Port or L port
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：Flange or others
Feature：Different electric actuaror is optional

Product Description

3 Way electric motorized ball valve introduction
3 Way electric motorized ball valve is composed of DSR, 3810R, DZW, HQ, PSQ series electric actuator and T type or L tyoe ball valve. It changes the relative position of ball core and pipe through the power generated by electric actuator, so as to realize different combination control of three pipeline fluids.3 Way electric motorized ball valve to 220V single-phase ac power source, accept the control system (or operator) to the 220V switch signal, and through the single-phase power switch drive reversible single-phase gear reducer motor, according to the combined requirements of the provisions, so that the T-type 3 way ball valve to achieve the line fluid reversing action.
3 Way electric motorized ball valve can make three orthogonal pipelines connected to each other, that is, play the role of shunt (confluence), and also can make two of the pipelines connected and cut off the other pipeline, flexible control of confluence or diverging of pipeline intermediate.

3 Way electric motorized ball valve Product Range:

-Ball valve size: 1/2" ~ 12" (DN15-DN300)
-Pressure: ANSI Class 150~600(PN16-PN64)
-Temperature for electric ball valve: -46ºC~ 450ºC
Body Materials: WCB,CF8 CF8M CF3 CF3M or others
Trim: CF8 CF8M CF3 CF3M or other stainless steel
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of electric ball valve: ISO5211

3 Way electric motorized ball valve standard
Design standard: API 6D , ASME B16.34
Structural length: API 6D, ASME B16.10
Test & inspection :API 6D, API 598
Pressure and temperature:ASME B16.34
Flange ends :ASME B 16.5 , JB/T 79
The size of valve connecting flange can be designed according to customer's requirement.

3 Way electric motorized ball valve material

No.	Part name	Material
No.	Part name	WCB	CF8	CF8M	CF3M
1	Body/Bonnet	WCB	CF8(304)	CF8M(316)	CF3M(316L)
2	Ball	WCB+ENP	CF8(304)	CF8M(316)	CF3M(316L)
3	Seal ring	PTFE、PPL、Graphite
4	Seat	PTFE	PTFE	PTFE	PTFE
5	Packing	Graphite/PPL/PTFE+Oring
6	Shaft	2Cr13	304	316	316L
7	Bolt	35CrMoA	304	316	316L
8	Gasket	PTFE、PPL、Graphite

3 Way electric motorized ball valve actuator parameter
Electric actuator type: DSR, 3810R, DZW, HQ, PSQ electric actuator
Main technical parameters
Power supply voltage: 220V/50Hz, 380V/50Hz;
Input signal: 4-20mA or 1-5V·DC; Output signal: 4-20mA·DC
Protection level: equivalent to IP65(or IP67);
Explosion-proof marks: Exd Ⅱ BT4;
Hand operation function: handle.
Ambient temperature: -25 ~ +70℃;
Ambient humidity: ≤95%
